Electric Grease Pump

4lb / 2kg

8lb / 4kg

17lb / 8kg

Extend Equipment Life

Increase the life of equipment with automatic lubrication delivering to desired grease points

Keep contaminants out

Sustain positive pressure to flush out pesky contaminants while equipment is running

Save on Maintenance

Lengthen the time between maintenance intervals and save on labor costs

Protection with grease

Prevent corrosion, friction, and rust by adding a protective layer of grease to equipment

Enhance your operation and grease with ease

Dependable system designed to resist harsh job site environments
Extends equipment life with automatic lubrication to all desired zerks
Lengthens time between maintenance intervals; labor cost savings
Prevent corrosion, friction and rust by adding a protective layer of grease
Supported by our world class customer service and sales support

SPECS	4 LB / 2 KG	8 LB / 4 KG	17 LB / 8 KG
NUMBER OF OUTLETS	From 1 to 3	From 1 to 3	From 1 to 3
DISCHARGE PER REV WITH FIXED PUMPING	.01³ / .16 cm³	.01³ / .16 cm³	.01³ / .16 cm³
DISCHARGE PER REV WITH ADJUSTABLE PUMPING	.0006 - .01 in³ / 0.01 - 0.16 cm³	.0006 - .01 in³ / 0.01 - 0.16 cm³	.0006 - .01 in³ / 0.01 - 0.16 cm³
RPM	23 rpm (12 V DC) / 22 rpm (24 V DC)	23 rpm (12 V DC) / 22 rpm (24 V DC)	23 rpm (12 V DC) / 22 rpm (24 V DC)
DISCHARGE PER MINUTE WITH FIXED PUMPING	.225 in³ / 3.68 cm³ (12 V DC) \| .215 in³ / 3.52 cm³ (24 V DC)	.225 in³ / 3.68 cm³ (12 V DC) \| .215 in³ / 3.52 cm³ (24 V DC)	.225 in³ / 3.68 cm³ (12 V DC) \| .215 in³ / 3.52 cm³ (24 V DC)
DISCHARGE PER MINUTE WITH ADJUSTABLE PUMPING	.014 - .225 in³ / 0.23 - 3.68 cm³ (12 V DC) \| .013 - .215 in³ / 0.22 - 3.52 cm³ (24 V DC)	.014 - .225 in³ / 0.23 - 3.68 cm³ (12 V DC) \| .013 - .215 in³ / 0.22 - 3.52 cm³ (24 V DC)	.014 - .225 in³ / 0.23 - 3.68 cm³ (12 V DC) \| .013 - .215 in³ / 0.22 - 3.52 cm³ (24 V DC)
SUITABLE LUBRICANTS	00 NLGI No. 2 Rated for centralized lubrication systems	00 NLGI No. 2 Rated for centralized lubrication systems	00 TO NLGI No. 2 Rated for centralized lubrication systems
MAXIMUM OPERATING PRESSURE	4000 PSI \| 275 bar	4000 PSI \| 275 bar	4000 PSI \| 275 bar
TANK CAPACITY	4 LB / 2 KG - TRANSPARENT	8 LB / 4 KG - TRANSPARENT	17 LB / 8 KG - TRANSPARENT
TEMPERATURE	FROM -4° TO +176°F	FROM -4° TO +176°F	FROM -4° TO +176°F
PUMP OUTLET FITTING	#4 MJIC	#4 MJIC	#4 MJIC
LOW LEVEL INDICATION	Switch rating 200 V DC 10 WATT max	Switch rating 200 V DC 10 WATT max	Switch rating 200 V DC 10 WATT max

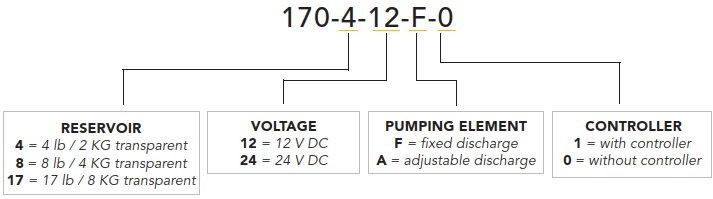

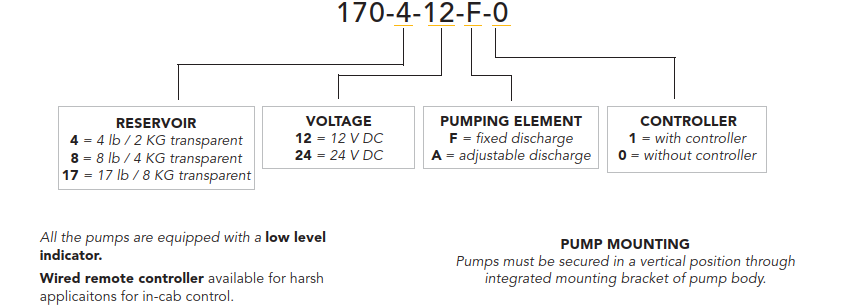

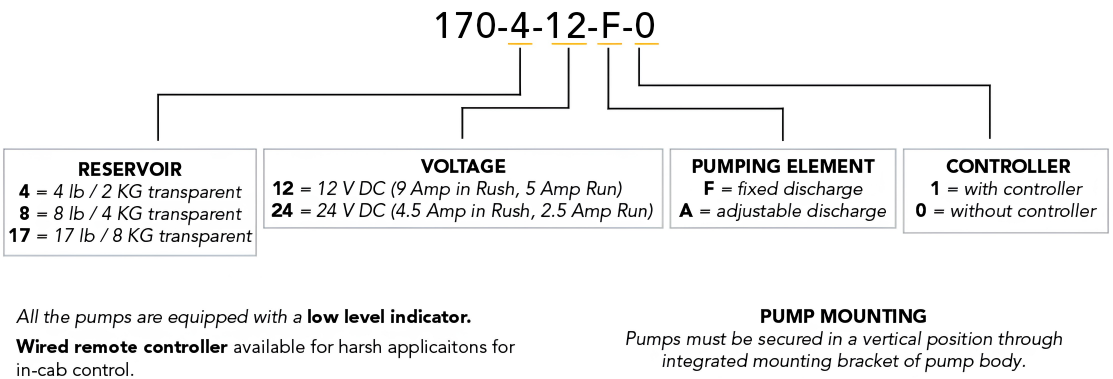

Electric Grease Pump build part number-1

DESCRIPTION	ITEM #
LUBEMINDER® 4 LB / 2 KG (12/12 V) ELECTRIC GREASE PUMP	BUILD YOUR PART
LUBEMINDER® 8 LB / 4 KG (12/24 V) ELECTRIC GREASE PUMP	BUILD YOUR PART
LUBEMINDER® 17 LB / 8 KG (12/24 V) ELECTRIC GREASE PUMP	BUILD YOUR PART

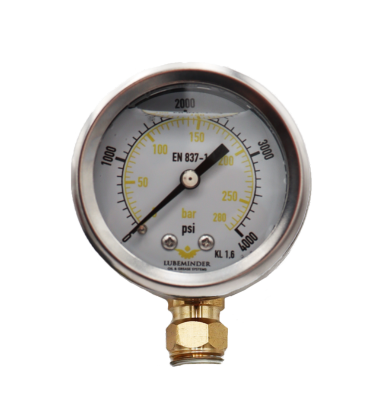

LubeMinder Electric Grease Pump_Gauge_web

170-0065

Gauge, 2 inch, 1/4" NPT, bottom mount, liquid fill, 0-4000 PSI / 280

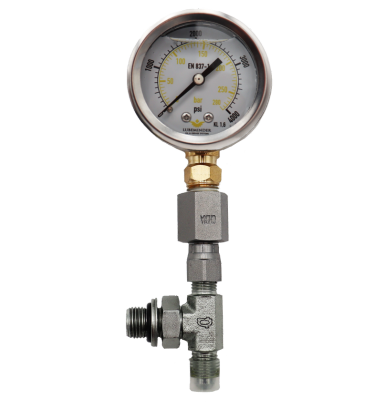

LubeMinder Electric Grease Pump_Gauge with fittings_web

170-2261

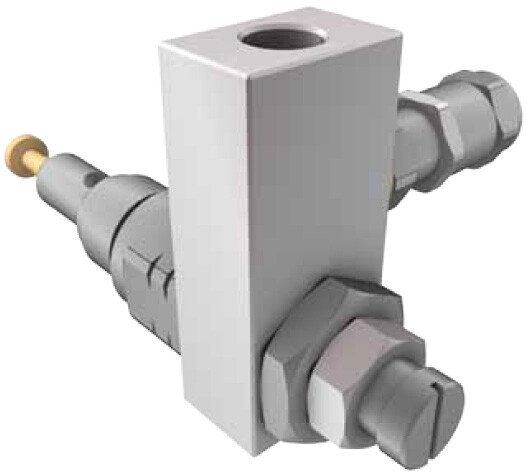

external safety valve for discharge pump_electric grease pump accessories_no measurements

170-2263

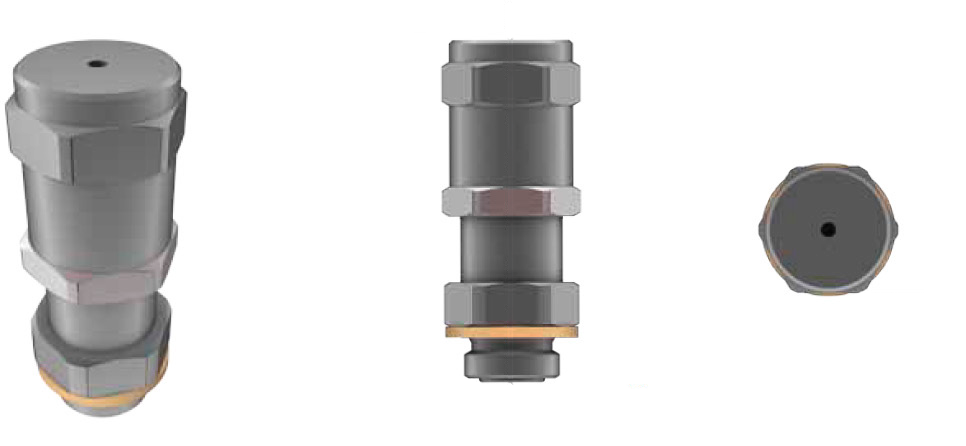

fixed discharge pump_without safety valve_electric grease pump accessories

170-2264

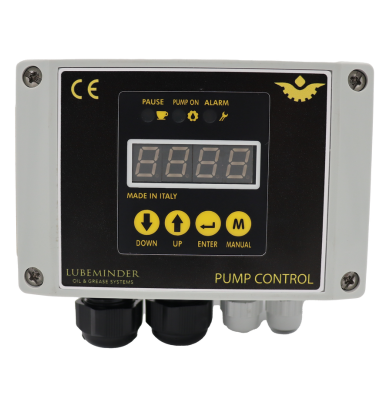

LubeMinder Electric Grease Pump_Timer Controller_web

170-2265

For cab mounting controller or remote for extreme conditions.

170-2266

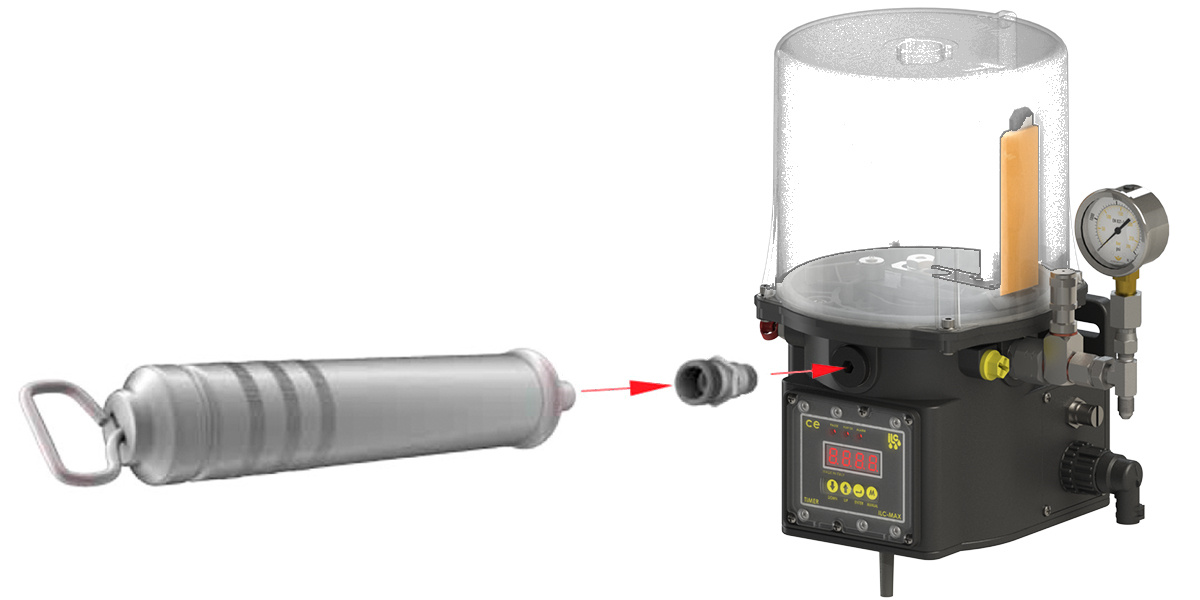

Unscrew the yellow cap. Install the filling connection. Insert the cartridge in the hand pump, fill the tank.

170-2267

170-2268

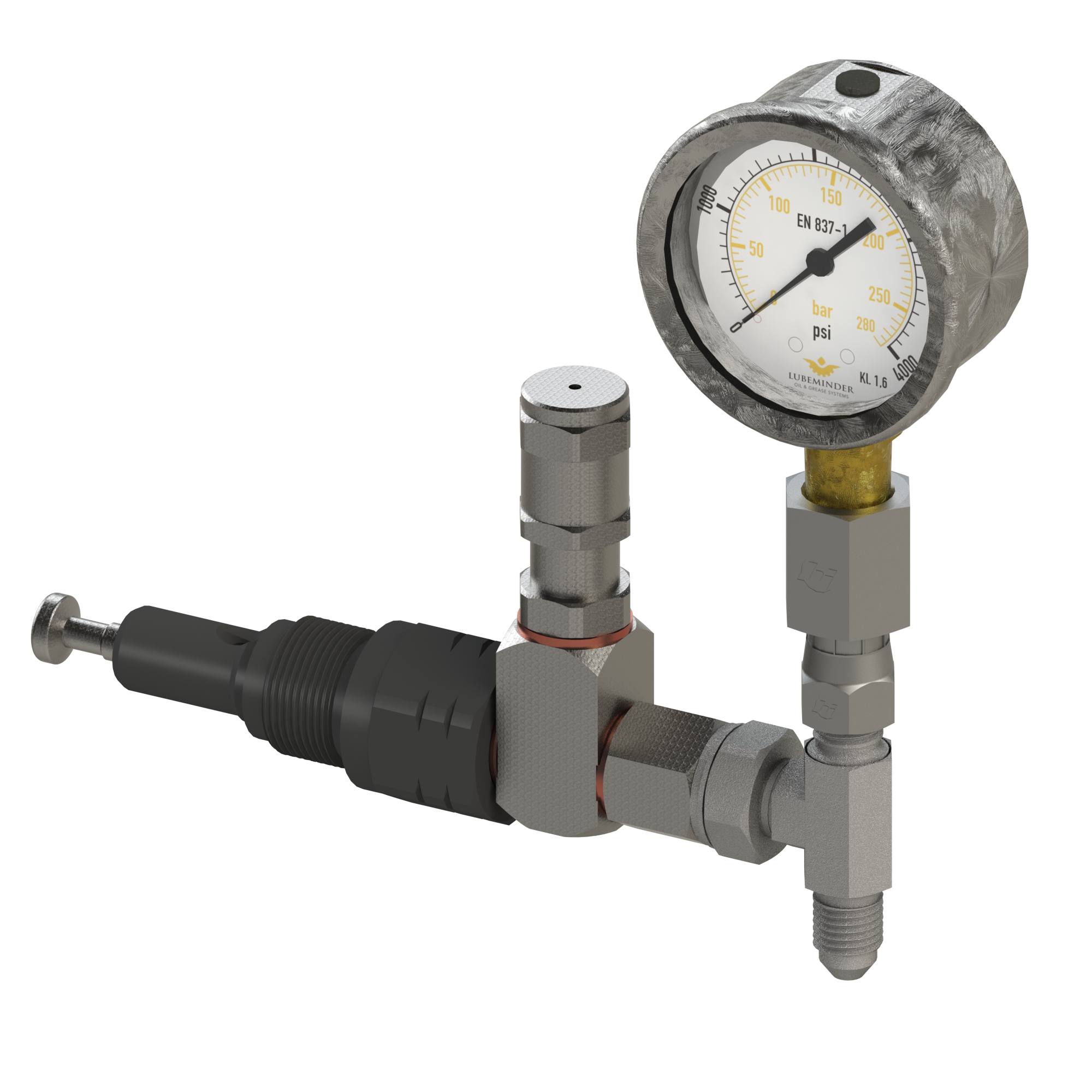

adjustable discharge pumping complete with safety valve_electric grease pump accessories

170-2269

170-2270

DESCRIPTION	ITEM #
LubeMinder® 0-4000 PSI 1/4" Bottom Stem Mount Liquid Filled Pressure Gauge	170-0065
.01 Replacement Gauge and Outlet Assembly	170-2261

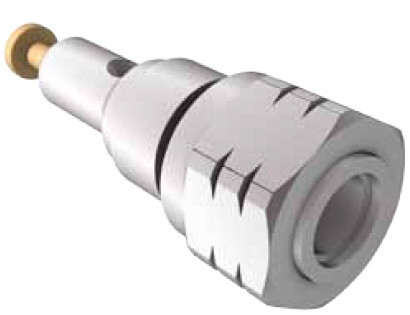

External Safety Relief Valve	170-2263
.01 CUIN LubeMinder® Replacement Pumping Element	170-2264
LubeMinder® Remote Control	170-2265
Grease Cartridge Quick Fill Kit	170-2266

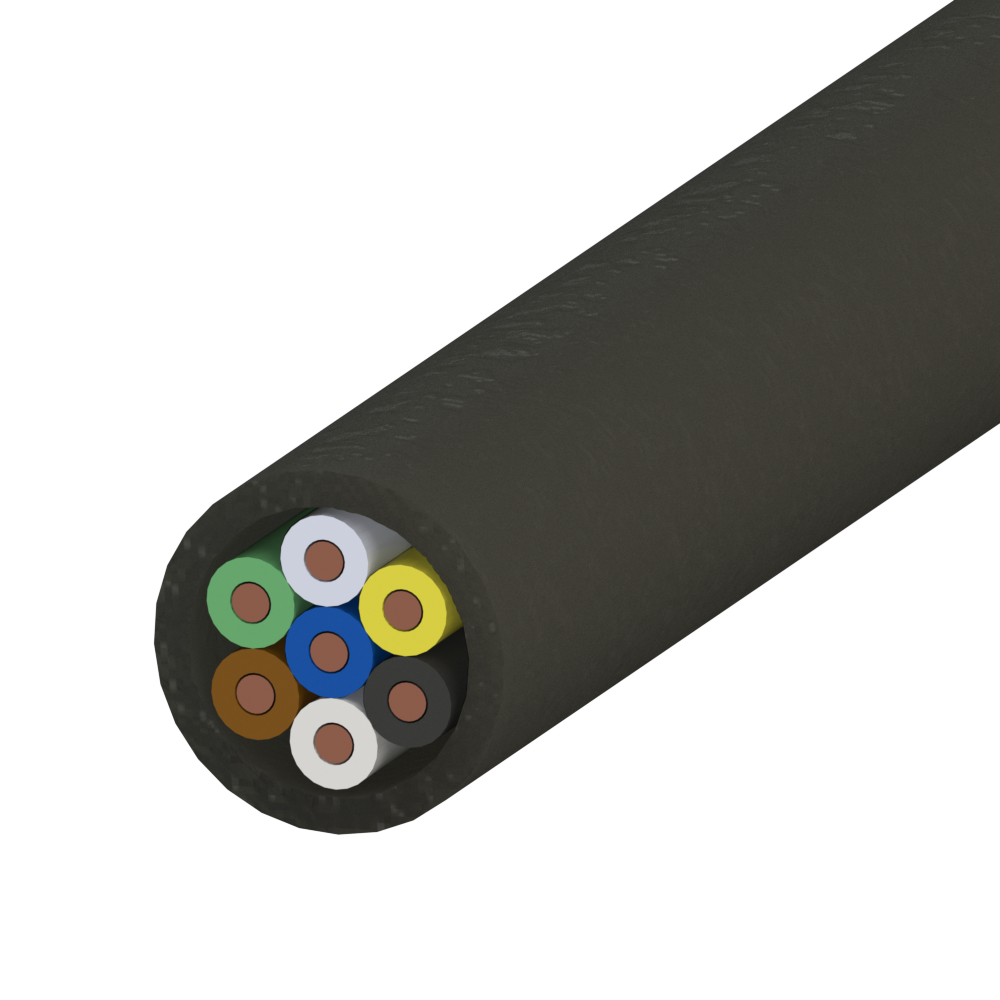

LubeMinder® Power Pump Cable-7 Lead	170-2267
.01 CUIN LubeMinder® Auxiliary Pumping Element Assembly	170-2268
Replacement LubeMinder® Adjustable Output Pumping Element	170-2269

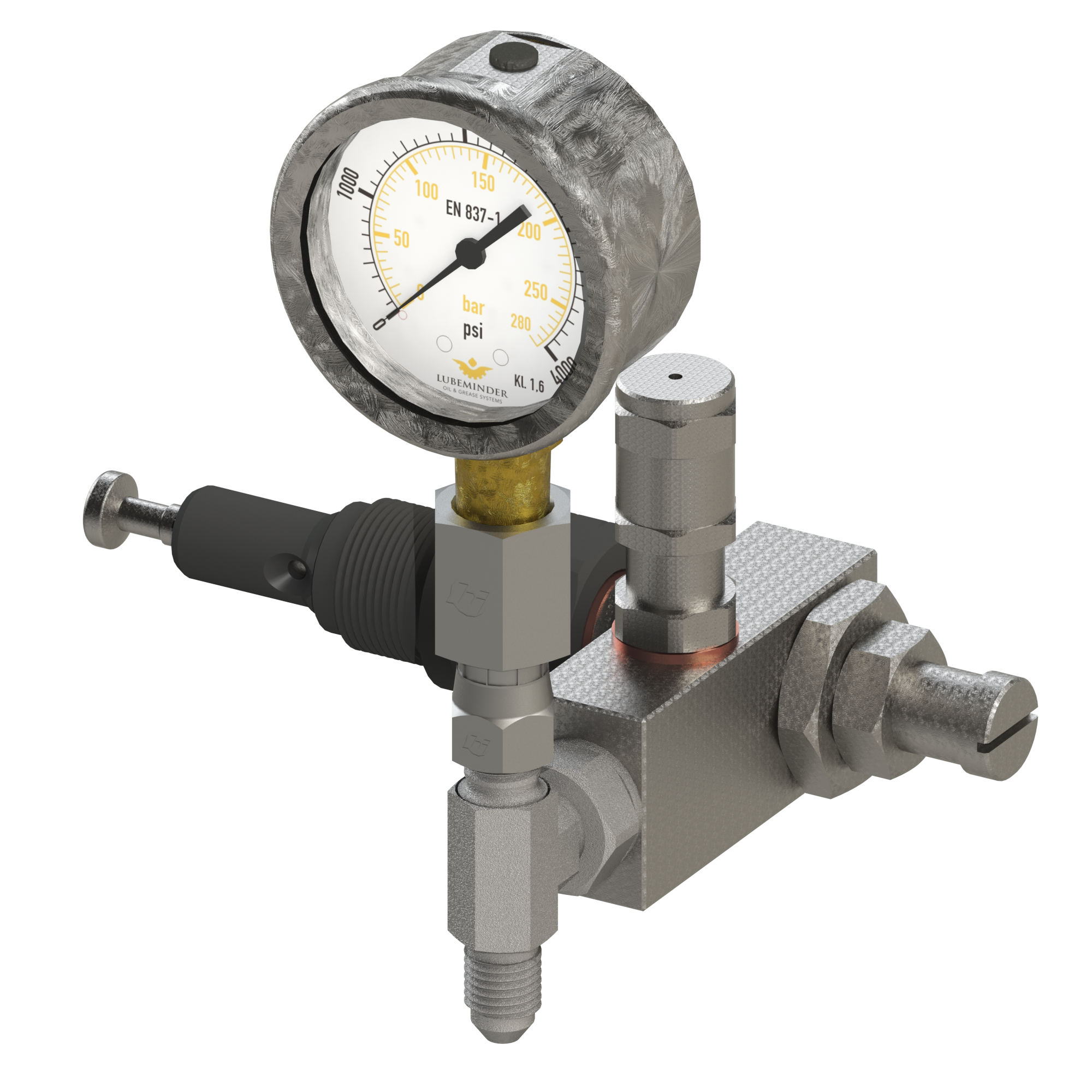

Adjustable LubeMinder® Auxiliary Pumping Element Assembly	170-2270

Electric Grease Systems

4lb / 2kg

8lb / 4kg

17lb / 8kg

LubeMinder®

Electric Grease Pump

Extend Equipment Life

Keep contaminants out

Save on Maintenance

Protection with grease

Enhance your operation and grease with ease

Frequently Asked Questions:

How does the electric grease pump work?

How can a greaser increase the life of a chain?

Which type of grease should I use?

Electric Grease Pump Technical Information

ordering Information

Electric Grease Pumps

Electric Pump Accessories

Electric Grease pumps

Electric Grease pump Accessories
