Hydraulic Grease Pump

LubeMinder®

Hydraulic Grease Pump

The LubeMinder® Hydraulic Grease Pump consistently greases grease points while running. The actuated grease pump requires no electricity so it can be installed where your critical points are located. This greasing system offers a variety of components and is easily customizable to meet your needs. The LubeMinder® Hydraulic Grease Pump applies grease at perfectly timed intervals to ensure even grease application, minimize abrasion, and to cool down moving parts.

Extend Life by 2-3x

Double or triple the lifespan of your bearings, bushings, pins, and gears.

No Electricity

No more outlets - this grease pump is powered by hydraulic actuation.

No Mess Bellows

Change out your bellows without any tough grease stains or spillage.

Made By You

Customize your greasing system design the way you want it.

Lubrication for Industrial Equipment

The LubeMinder® Hydraulic Grease Pump is the ideal solution for equipment on the move and industrial applications including the concrete industry and mobile applications. The hydraulic greaser is versatile and reliably lubricates grease points to eliminate downtime and keep operations running smoothly.

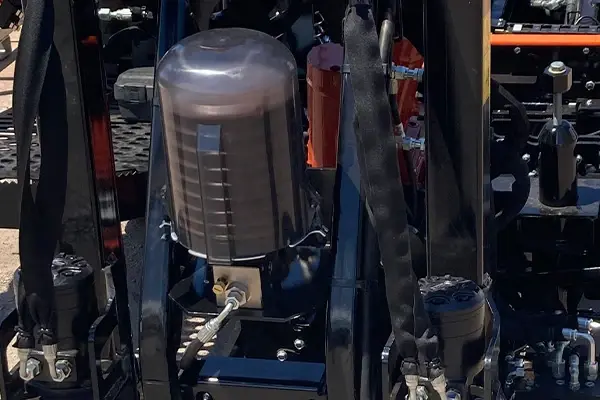

Custom Grease on Drill Rig_LubeMinder_WEB

PROPERTY	SPECIFICS
NUMBER OF OUTLETS	One
MAX DISCHARGE PER CYCLE	.3965 in³ / 6.5 cm³
MIN DISCHARGE PER CYCLE	.06 in³ / 1 cm³
MAX DISCHARGES PER MINUTE (12 CYCLES/MIN.)	4.75 in³ / 78 cm³
SUITABLE LUBRICANTS	Oils, Greases, Anti-Seize, & Custom Applications
MAX INLET PRESSURE / MAX OUTLET PRESSURE	2000 PSI \| 140 bar / 4500 PSI \| 310 bar
TANK CAPACITY	12 LB / 5.5 KG - TRANSPARENT
TEMPERATURE	From -25°F to +225°F
PUMP INLET (STD.) / OUTLET (STD.)	2X #4 FJIC / #12 SAE O-ring Port
LOW LEVEL INDICATION (OPTION)	10-30 VDC Digital Output

170-3838

170-3979

170-3980

170-3990

MODEL TYPE	ITEM #

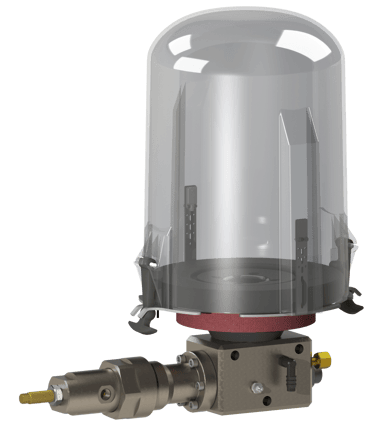

Hydraulic Grease Pump with Low Level Sensor, Heater, and Bellows Cover	170-3838

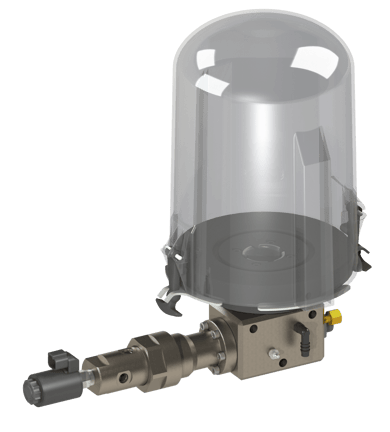

Hydraulic Grease Pump with Hydraulic Control Valve and Bellows Cover	170-3979

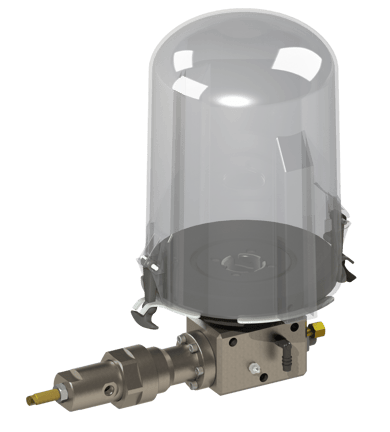

Hydraulic Grease Pump with Bellows Cover	170-3980

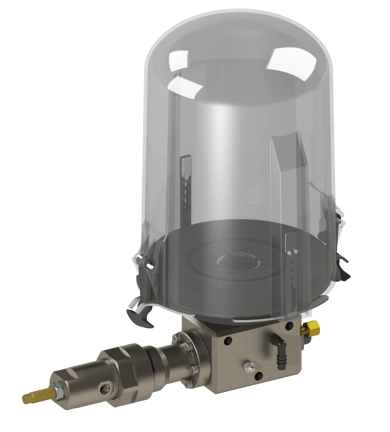

Hydraulic Grease Pump with Low Level Sensors and Bellows Cover	170-3990

170-0384

170-2060

170-2072

170-2073

170-2075

170-2076

170-2077

170-2085

170-2086

170-2087

170-2089

170-2272

170-2273

170-2274

170-2275

170-2276

170-2277

170-3003

Includes:

NLGI #1 grease

O-ring

End cap

170-3985

Includes:

Cover and latches

100R7

21999-0686

DESCRIPTION	ITEM #

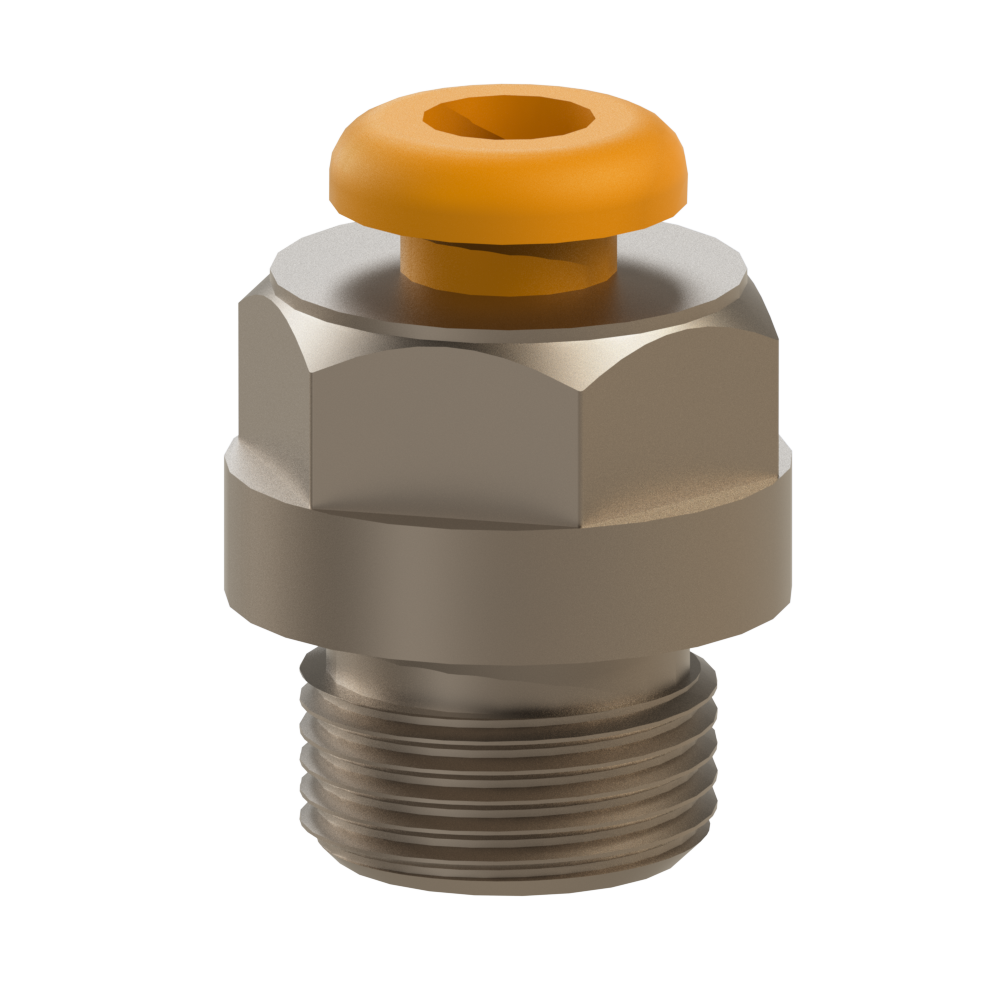

1/8" NPT O-Ring Push to Connect 5/32" Tube	170-0384
1/8" NPT High Pressure Grease Zerk	170-2060
1/8" NPT Female Outlet Check Valve	170-2072
Lubrication Forwarding Fitting	170-2073
#4 JIC to 1/4-28 Taper	170-2075
#4 JIC to 90° 1/4-28 Taper	170-2076
#4 JIC to 45° 1/4-28 Taper	170-2077
#2 JIC Female 37° Swivel - 1/8" ID Hose (Crimp)	170-2085
#4 JIC Female 37° Swivel - 1/8" ID Hose (Crimp)	170-2086
1/8" NPT Male Fixed - 1/8" Hose Ends (Crimp)	170-2087
1/8" NPT Male Swivel - 1/8" Hose Ends (Crimp)	170-2089
Adaptor #2 Male JIC x 1/8" NPT Male Straight	170-2272
Adaptor #2 Male JIC to 1/8" NPT Male Elbow 90°	170-2273
Adaptor #2 Male JIC to 1/8" NPT Male Elbow 45°	170-2274
Adaptor #4 Male JIC x 1/8" NPT Male Straight	170-2275

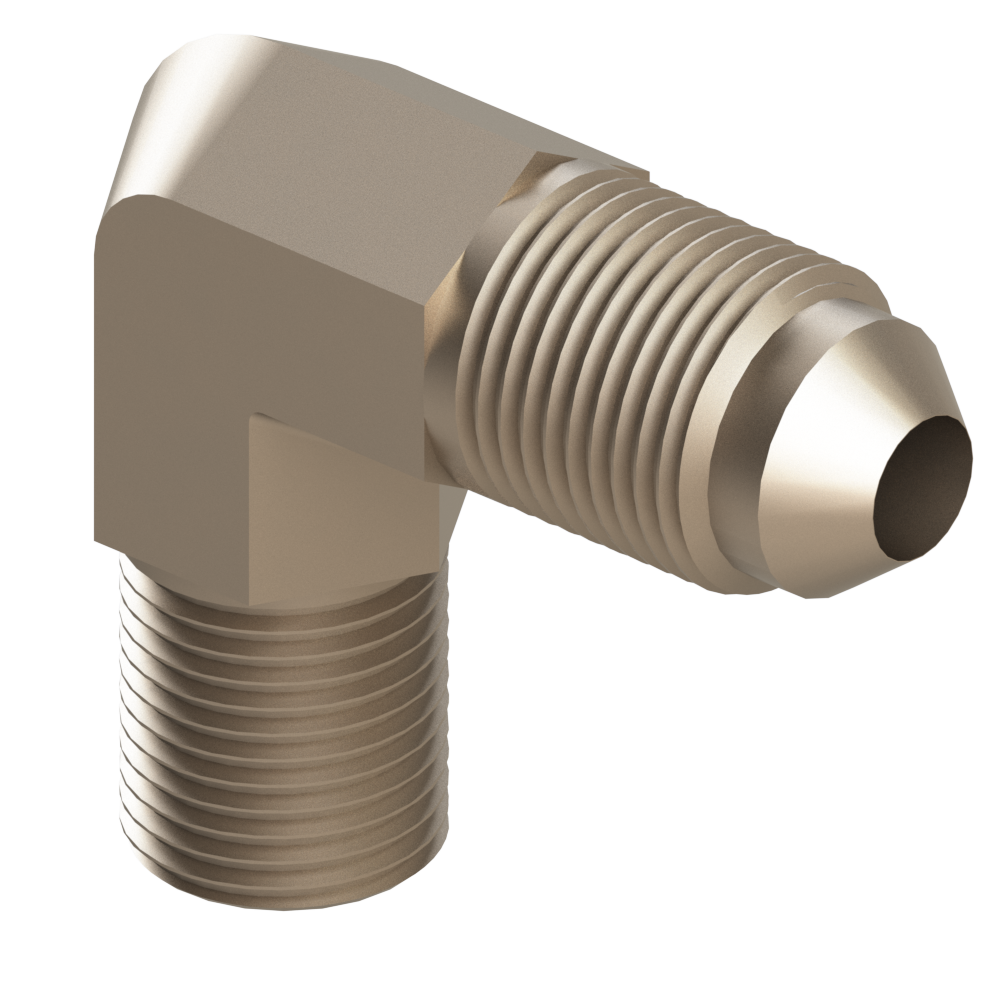

Adaptor #4 JIC to 1/8" NPT Male Elbow 90°	170-2276
Adaptor #4 JIC to 1/8" NPT Male Elbow 45°	170-2277

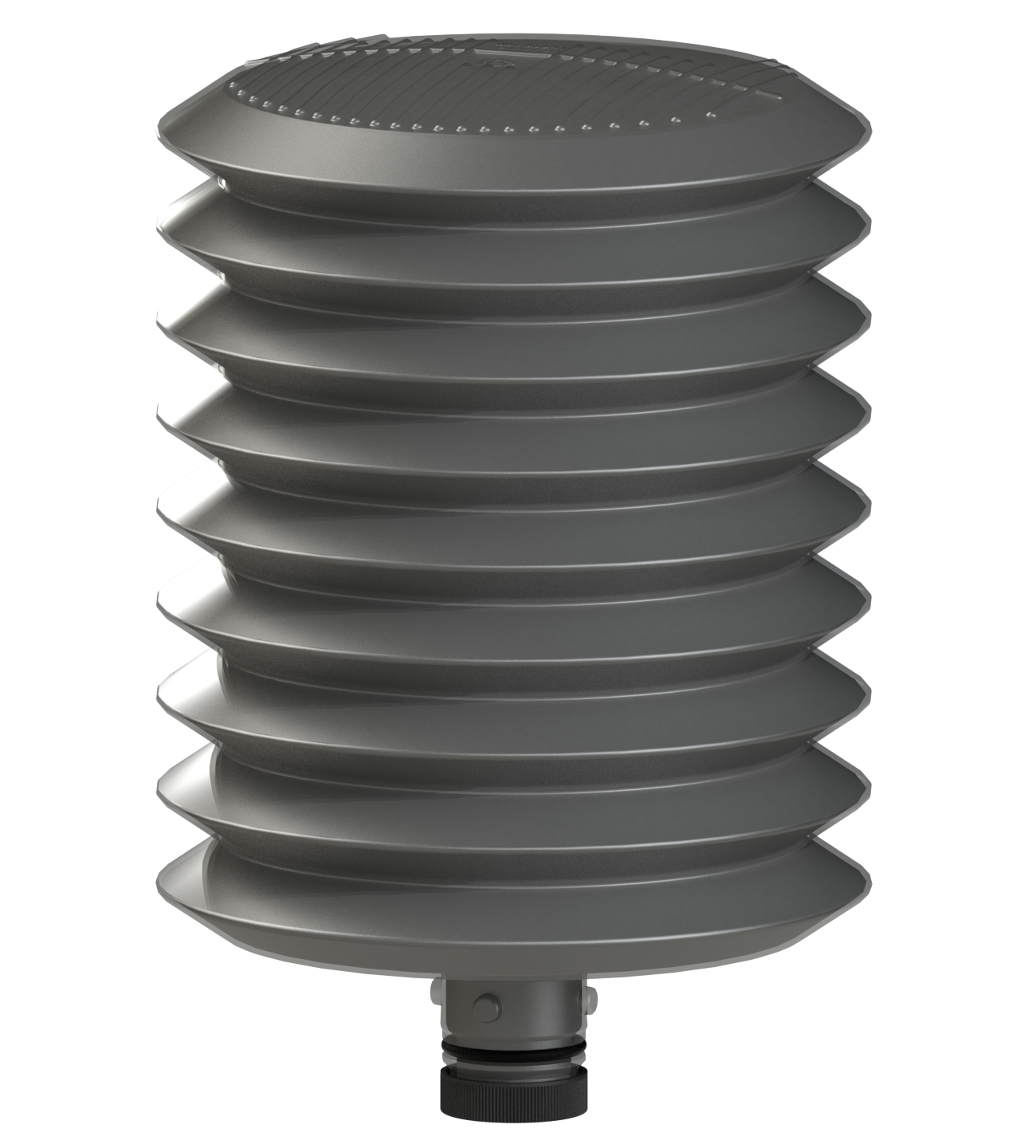

Grease Filled Bellows	170-3003

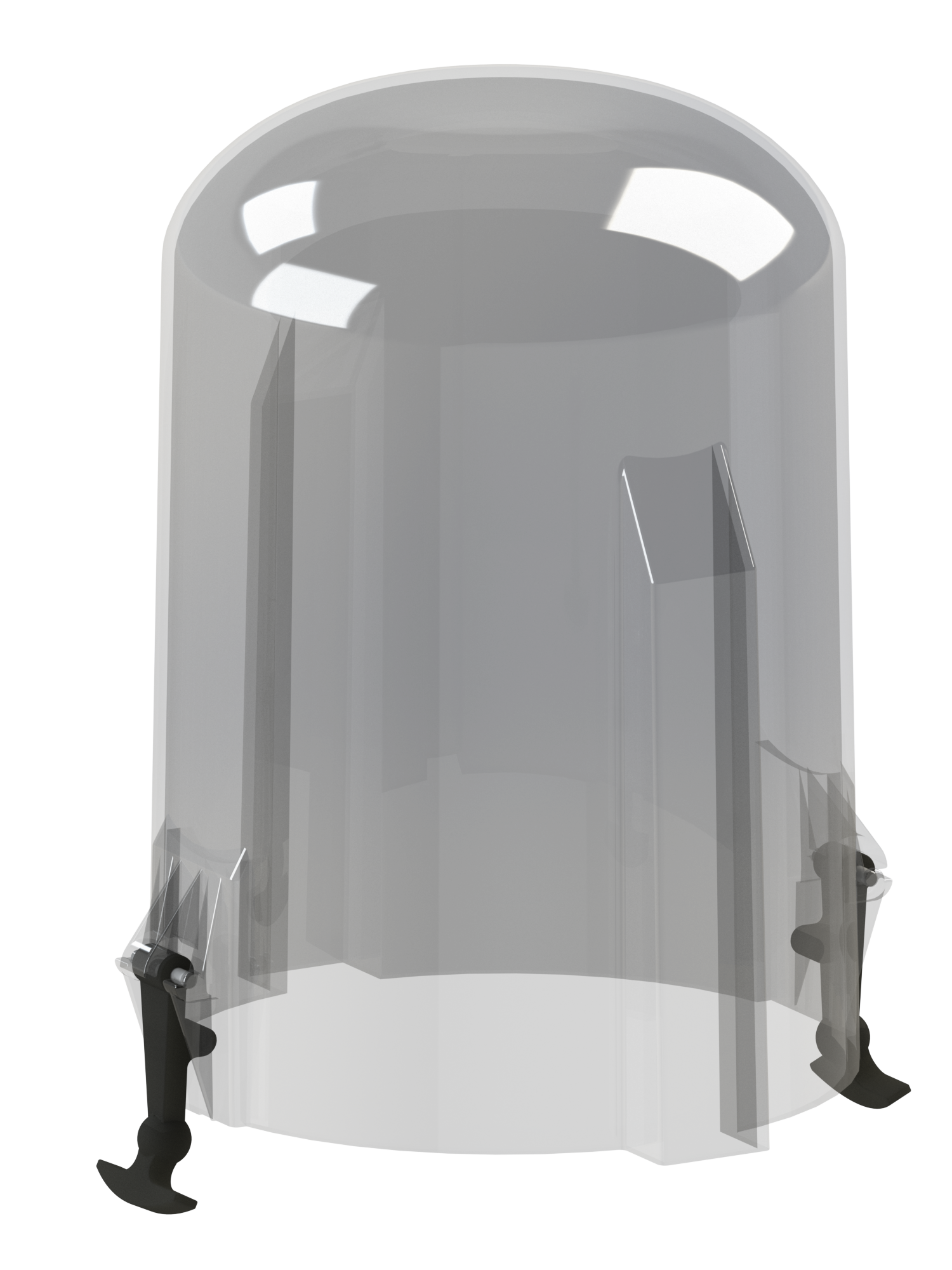

Bellow Cover with Latch	170-3985
High Pressure Tubing	100R7
High Pressure Grease Filled Tubing	21999-0686
