Diamondback Lite

economical hydraulic hose sleeve

UV Protection & ABRASION Resistance

The Diamondback Lite Tubular Sleeve is a hydraulic hose sleeve that offers protection from abrasion and UV degradation. Often used in agriculture, construction, and mobile equipment applications, The Diamondback Lite hydraulic hose protective sleeve is made from a proprietary engineered fiber woven tightly and heat-treated, which shrinks the sleeve to the finished dimension.

Key features and benefits:

  • Tested over 40,000 abrasion cycles (ISO 6945)
  • Temperature tested to 200°F continuous, 350°F intermittent
  • Easy install; Cut to length with a scissors
  • Mine Safety and Health Administration (MSHA) approved
  • Meets conductivity standard ISO 8031
  • Unmatched UV Protection
  • Sleeve dispensers available
Contact to Order
View Catalog Page

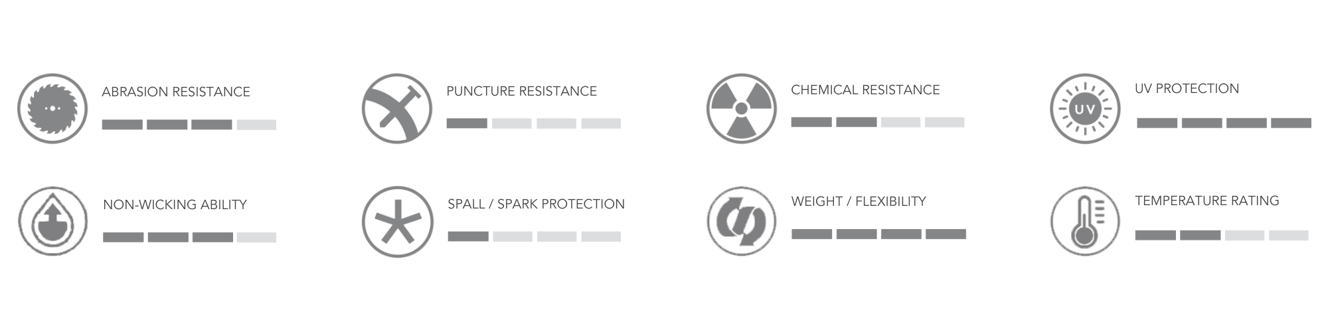

MATERIAL ATTRIBUTES

The Material Attributes of the Diamondback Lite

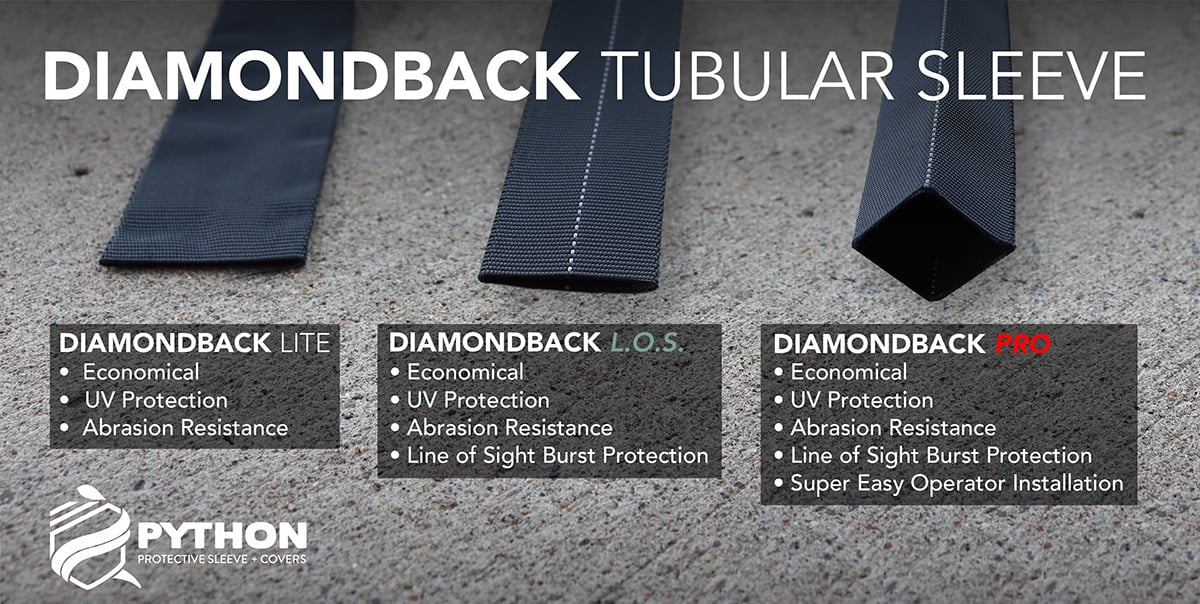

WHAT'S THE DIFFERENCE?

DIAMONDBACK TUBULAR SLEEVE

Close up of Diamondback Lite Sleeve Material

Diamondback Lite

  • Economical
  • UV Protection
  • Abrasion Resistance
    Order Now

Close up of Diamondback Line-of-sight Material

Diamondback L.O.S.

  • Economical
  • UV Protection
  • Abrasion Resistance
  • Line of Sight Burst Protection
    See This Sleeve




Close up of Diamondback Pro Sleeve Material

Diamondback PRO

  • Economical
  • UV Protection
  • Abrasion Resistance
  • Line of Sight Burst Protection
  • Super Easy Operator Installation
    See This Sleeve



The best economical hydraulic hose protection

With a fair price and protection that lasts over 40,000 abrasion cycles, rest assured this sleeve will protect your hydraulic hoses located in rough, rugged areas. It features unmatched flexibility for hassle-free installation and unparalleled UV protection that outlasts competitors. No more worrying if the outdoors is damaging or wearing down your sleeve too quickly. The Diamondback Lite sleeve offers an economical solution without sacrificing operator safety and job site efficiency.

A Large Roll of the Diamondback Lite Sleeve

SIZING & ORDERING INFORMATION

DIAMETER (IN) ITEM # FLAT WIDTH (IN) ROLL LENGTH (FT)
0.67"
DBK-017-LTE
1.18"
300
0.79"
DBK-020-LTE
1.34"
300
0.91"
DBK-023-LTE
1.54"
300
0.98"
DBK-025-LTE
1.65"
300
1.06"
DBK-027-LTE
1.77"
300
1.22"
DBK-031-LTE
2.05"
300
1.42"
DBK-036-LTE
2.24"
300
1.57"
DBK-040-LTE
2.6"
300
1.73"
DBK-044-LTE
2.83"
300
1.85"
DBK-047-LTE
3.03"
300
2.17"
DBK-055-LTE
3.5"
300 (TWO 150FT ROLLS)
2.36"
DBK-060-LTE
3.82"
300 (TWO 150FT ROLLS)
2.62"
DBK-066-LTE
4.18"
300 (TWO 150FT ROLLS)
2.87"
DBK-073-LTE
4.65"
300 (TWO 150FT ROLLS)
Contact to Order

Band Clamps Ordering Information

Fasten your sleeve to your hose assembly with band clamps.

Band Clamps_1



WIDTH (IN) ITEM # ID DESCRIPTION
¼”
BC-1.75
1.75
Band Clamp 1.75” Dia
¼”
BC-2.25
2.25
Band Clamp 2.25” Dia
¼”
BC-3.25
3.25
Band Clamp 3.25” Dia
Contact to Order
