Diamondback pro

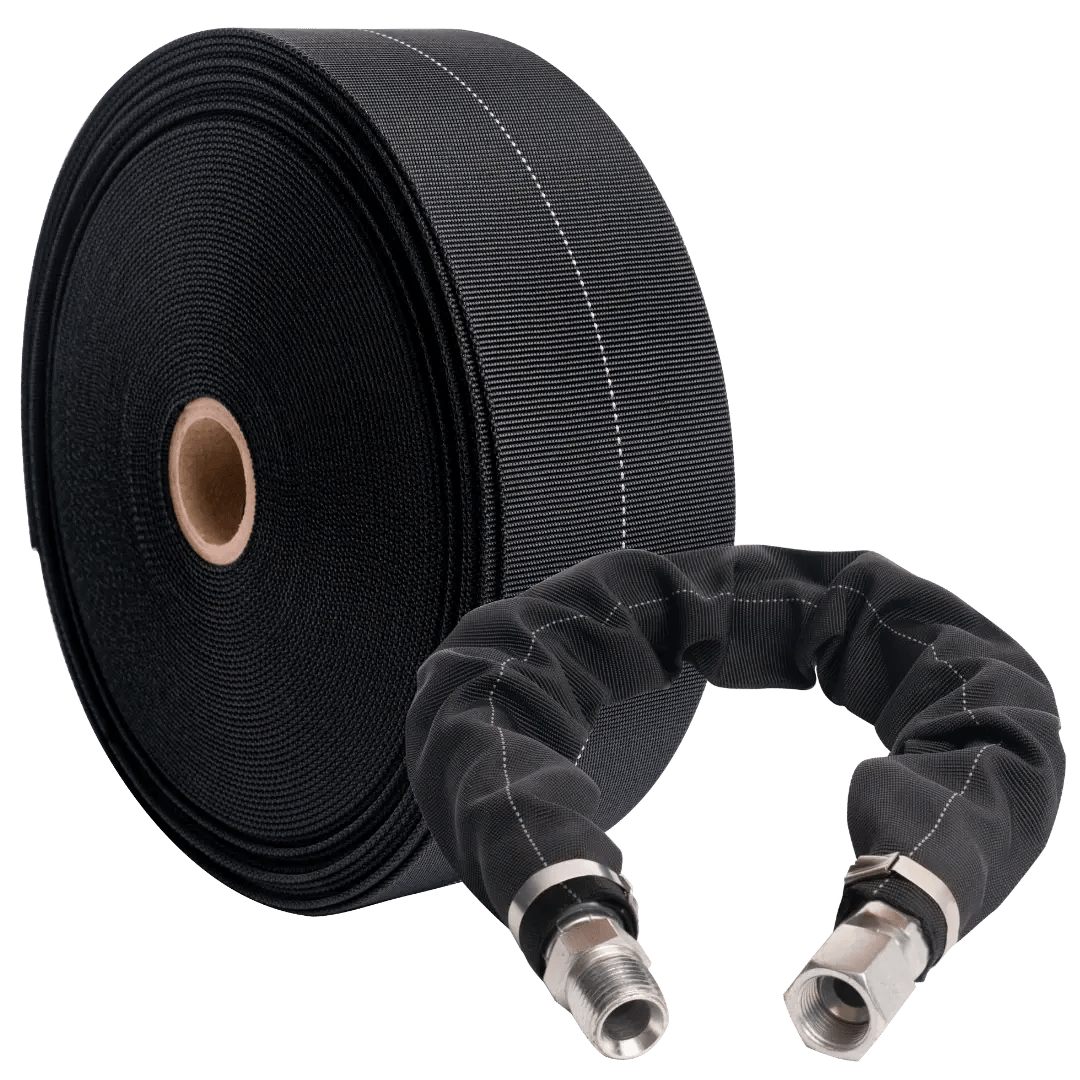

quick install hydraulic hose sleeve

PIN HOLE, BURST PROTECTION, ABRASION PROTECTION & EASE OF INSTALLATION

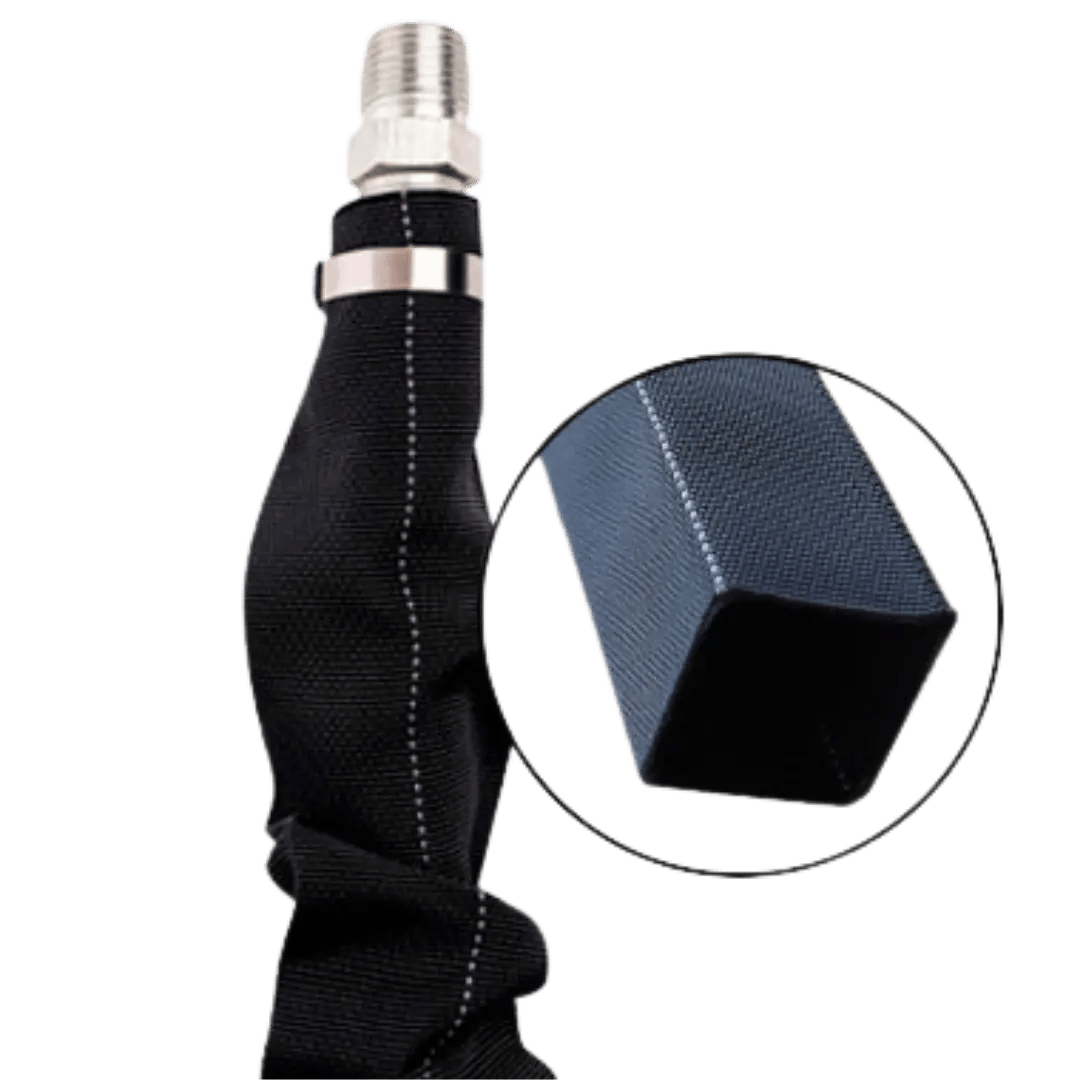

The Diamondback PRO hydraulic sleeve offers unmatched hose burst protection and abrasion resistance. The protective sleeve is made of a proprietary fiber that is woven tightly and heat-treated to shrink to the finished dimension while maintaining flexibility. The Diamondback PRO provides the easiest installation benefits in the market. Operators are saving up to 80% on installation costs when compared to standard nylon sleeves.

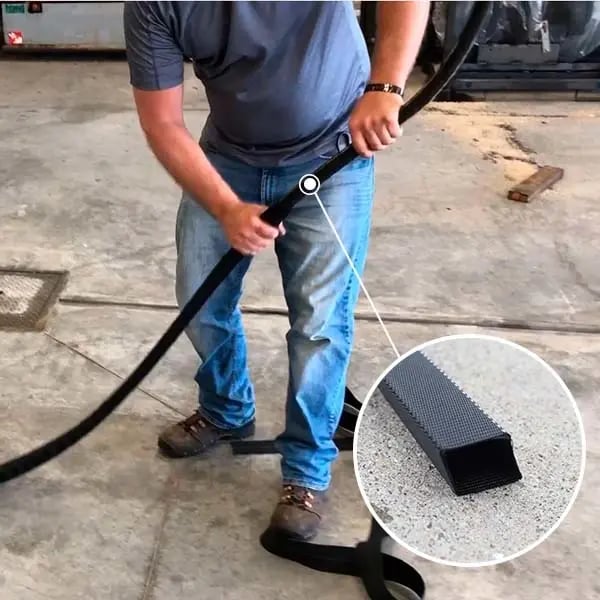

How? Its proprietary material and extra tight weave keeps the sleeve in a diamond shape during installation - allowing the hose to easily slide through.

KEY FEATURES & BENEFITS:

  • Reduces sleeve installation by up to 80%
  • Tested over 1.7 million abrasion cycles (ISO 6945)
  • Meets "Line of Sight" operator protection specification EN982, EN414, EN ISO Regulation 3457:2008
  • Pinhole protection tested to 4,000 PSI. Burst protection Tested to 12,000 PSI
  • Temperature tested to 200°F continuous, 350°F intermittent
  • Cut to length, 50% less bulky than Cordura
  • Tight, smooth surface contains oil spillage from pin hole leaks
  • Mine Safety and Health Administration (MSHA) approved IC-289/01
  • Meets conductivity standard ISO 8031
  • Unmatched UV Protection
  • Sleeve dispensers available

Contact to Order
View Catalog Page

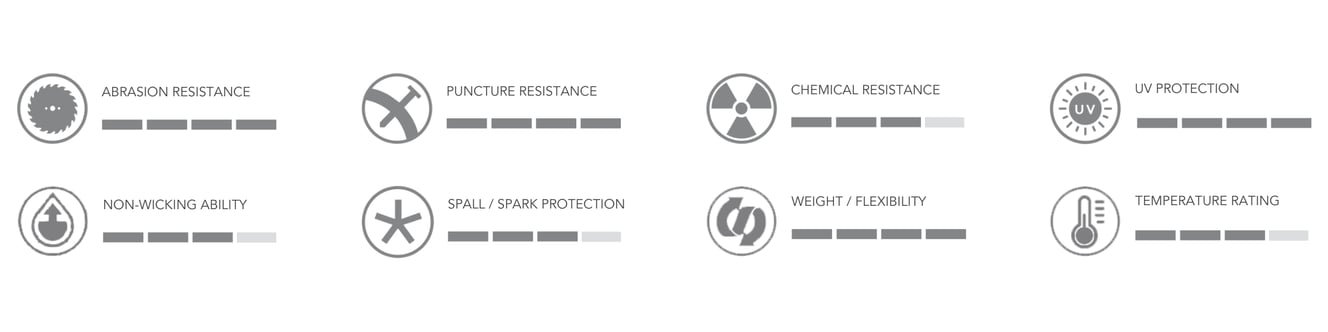

MATERIAL ATTRIBUTES

hydraulic hose sleeve material_python diamondback pro

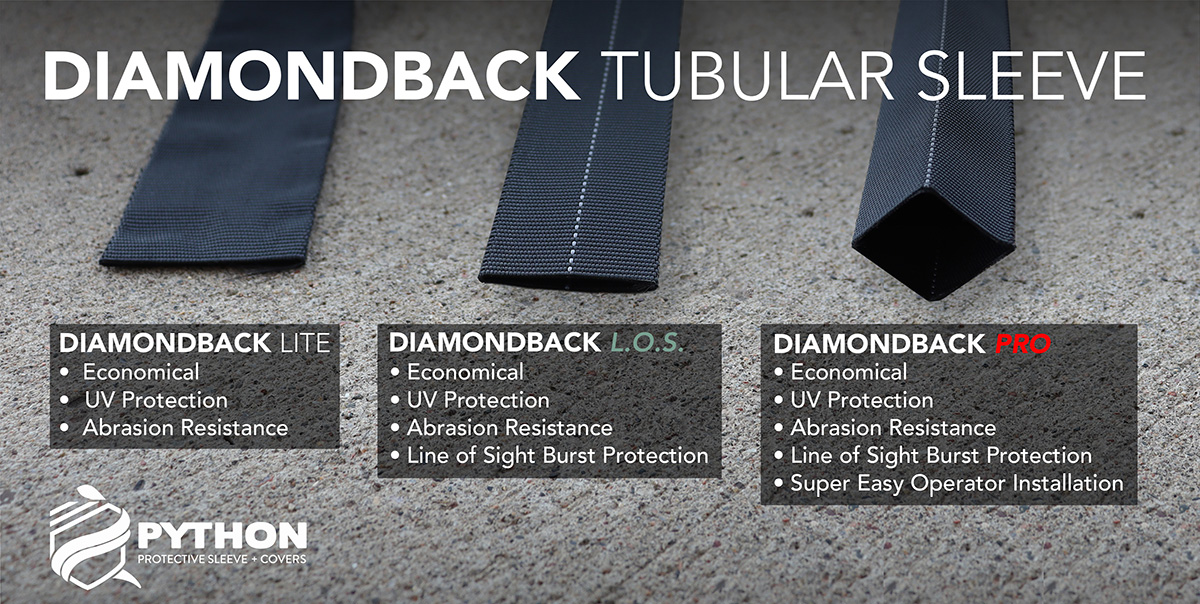

WHAT'S THE DIFFERENCE?

DIAMONDBACK TUBULAR SLEEVE

Close up of Diamondback Pro Sleeve Material

Diamondback PRO

  • Economical
  • UV Protection
  • Abrasion Resistance
  • Line of Sight Burst Protection
  • Super easy operator installation

    Order Now

Close up of Diamondback Line-of-sight Material

Diamondback L.O.S.

  • Economical
  • UV Protection
  • Abrasion Resistance
  • Line of Sight Burst Protection


    Line-of-Sight




Close up of Diamondback Lite Sleeve Material

Diamondback LITE

  • Economical
  • UV Protection
  • Abrasion Resistance

    Economical

upgrade your hydraulic hose sleeve

The Diamondback PRO sleeve offers hydraulic hose burst protection, pinhole protection, abrasion protection, and the quickest installation on the market. It protects your hoses from the heat of the sun with UV resistant nylon coating that has been tested for fading and degradation. The PRO experience is reliable, unmatched hydraulic hose protection so you can relax on-site and off no matter the weather conditions. This hose sleeve is designed to protect workers from the hazards that come from working with high pressure fluids, while increasing efficiency and productivity on the field with the diamond shaped easy-install sleeve. This hose cover is the catch-all solution.

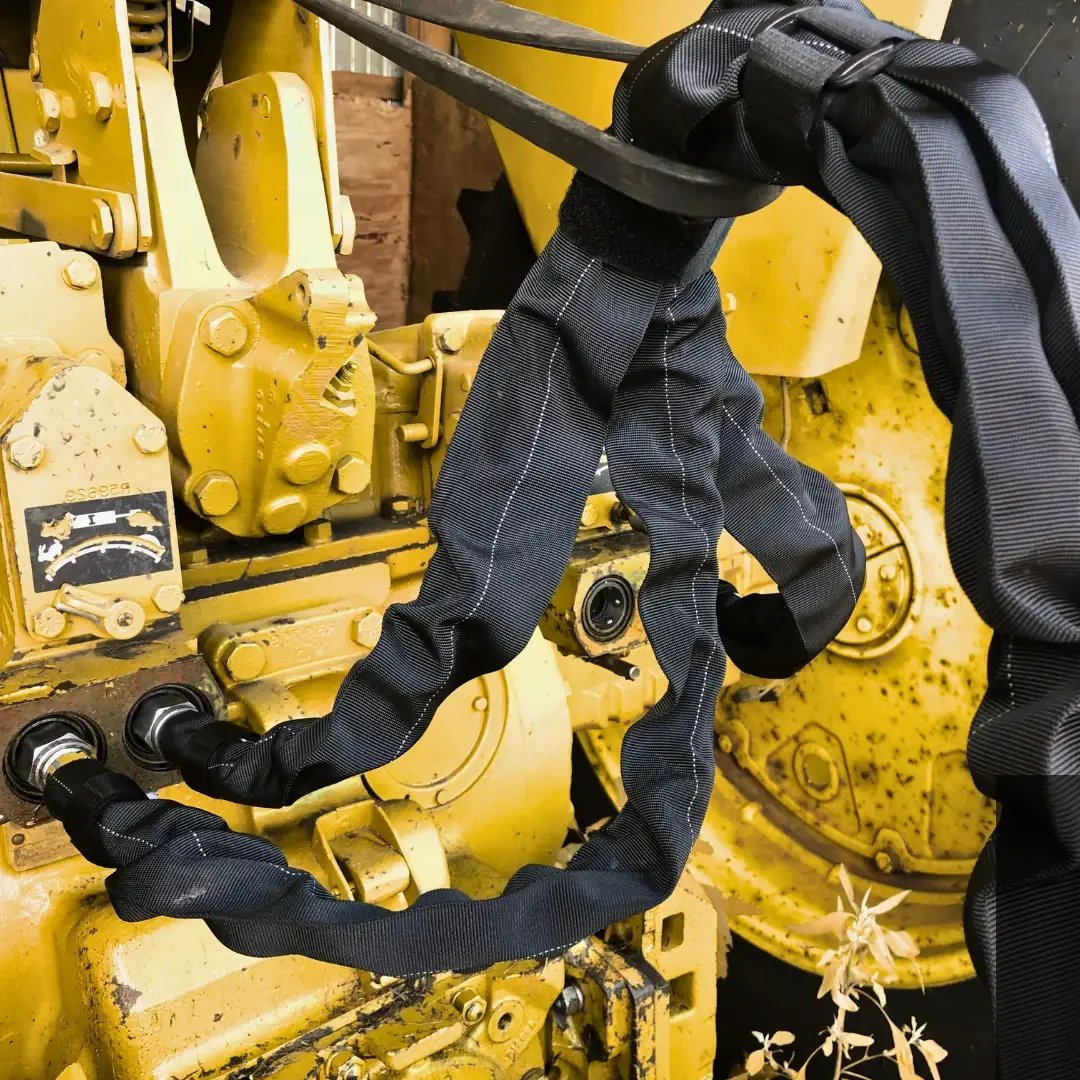

The Diamondback PRO sleeve is versatile in its protection, and number of applications, including: aerial lifts, mowers, cranes, forklifts, agriculture equipment, rock drills, and hydraulic tools.

SIZING & ORDERING INFORMATION

DIAMETER (IN) ITEM # FLAT WIDTH (IN) ROLL LENGTH (FT)
0.67"
DBK-017-PRO
1.18"
300 (2 rolls of 150)
0.79"
DBK-020-PRO
1.34"
300 (2 rolls of 150)
0.91"
DBK-023-PRO
1.54"
300 (2 rolls of 150)
0.98"
DBK-025-PRO
1.65"
300 (2 rolls of 150)
1.06"
DBK-027-PRO
1.77"
300 (2 rolls of 150)
1.22"
DBK-031-PRO
2.05"
300 (2 rolls of 150)
1.42"
DBK-036-PRO
2.24"
300 (2 rolls of 150)
1.57"
DBK-040-PRO
2.6"
300 (2 rolls of 150)
1.73"
DBK-044-PRO
2.91"
300 (2 rolls of 150)
1.85"
DBK-047-PRO
3.1"
300 (2 rolls of 150)
2.19"
DBK-055-PRO
3.63"
300 (2 rolls of 150)
2.38"
DBK-060-PRO
3.93"
300 (2 rolls of 150)
2.62"
DBK-066-PRO
4.31"
300 (2 rolls of 150)
2.88"
DBK-073-PRO
4.71"
300 (2 rolls of 150)
Contact to Order

Band Clamps Ordering Information

Fasten your sleeve to your hose assembly with band clamps.

Band Clamps_1



WIDTH (IN) ITEM # ID DESCRIPTION
¼”
BC-1.75
1.75
Band Clamp 1.75” Dia
¼”
BC-2.25
2.25
Band Clamp 2.25” Dia
¼”
BC-3.25
3.25
Band Clamp 3.25” Dia
Contact to Order
