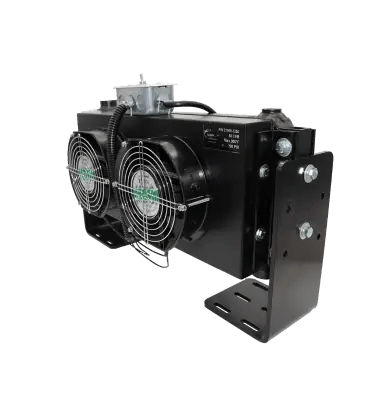

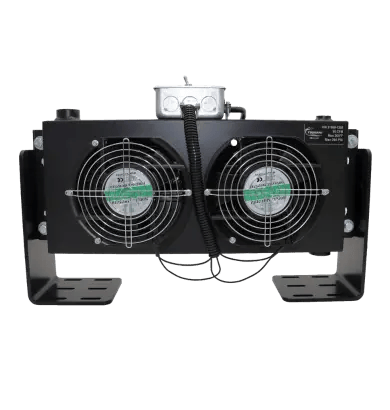

Aftercooler

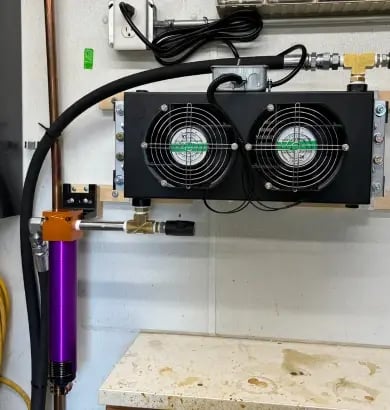

Aftercooler installation with Tsunami air filter

Features:

6 configuration options for optimal performance

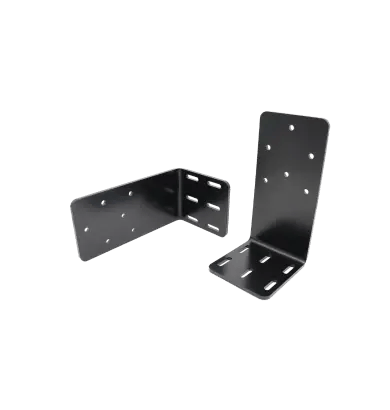

Wall-mounting
High volume fan
Bar & plate heat exchanger
Pre-cools hot compressed air before entering dryers

Benefits:

Cools and condenses water vapor into liquid moisture for easy removal
Ability to choose dew point based on configuration
Increase floor and operating space with wall-mount
Extend the life your compressed air system
Improve operating performance
Reduce downtime

Max flow rate: 50 CFM

Approach: Up to 20°F

Temperature pressure drop: <1 PSI

Max inlet pressure: 290 PSI

Max inlet temperature: 300°F

Power required: 120 VAC

Wall Mounted

Tsunami Product Catalog

Installation Instructions

Aftercooler Cut Sheet

MAX CFM: 50

ITEM #: 21999-1250

NPT: 3/4"

MAX PSI: 290

MAX TEMP: 300°F

DIMENSIONS: Vary

DESCRIPTION	ITEM #	PORT SIZE (NPT)	MAX PSI	MAX°F	AMPS	POWER	MSRP
AFTERCOOLER	21999-1250	3/4"	290	300	0.4	120 VAC	$1,100

I have been able to work for multiple days without having to stop and fix something. Before installing the aftercooler, I had to stop and either replace the gun top or clean it out several times per day which slowed me down. The Tsunami aftercooler has saved me time and money.

A.J. Wesloh

Owner, Extreme Spray Foam

Before installing the Tsunami Aftercooler, I was constantly dealing with water in my pumps, causing them to seize up and shut down operations. It slowed down our work and required frequent maintenance. Since adding the aftercooler, I haven’t had to clean the pump once—no more water issues, no more downtime. Everything I’ve received from Tsunami has been top-notch, and their customer service is outstanding. I’d absolutely recommend the aftercooler to anyone in the spray foam industry.

Dan Grady

Foam-It Spray Foam Insulation LLC

21999-0131 50 CFM water separator_web bucket

Water Separator

This high-quality filter is designed to remove dirt, particulate, and water from compressed air systems. The Tsunami Water Separator uses a unique up-flow gravity separation process to remove water droplets and aerosols from the air before being discharged through an automatic drain.

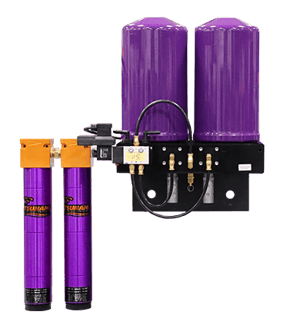

21999-1140 tsunami pure 7 regenerative dryer_web bucket
