Tsunami Regenerative Dust Collector Dryer

Tsunami Pre Filtration

Tsunami pre-filtration includes the water separator and oil coalescing filter to remove liquid water, bulk oils and particulate.

Regenerative Towers

Tsunami’s Regenerative Drying Technology uses sweep air to regenerate the towers during operation. It's like changing the desiccant every two minutes.

Efficient Construction

The Dust Collector Dryer is efficiently designed and constructed with very few moving parts, reducing potential stress points.

Features:

2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
Molecular Sieve Desiccant
Solenoid Valve Timer
Automatic Drains
Purge Exhaust Mufflers
High Flow Outlet Regulator
Air Quality Test Port
Flow Meter & Globe Valve
Heater pads available for cold temp applications
60-Gallon/80 Gallon Storage Tank (see chart below)

Benefits:

Dryer Performance:

Low relative humidity - down to .01% RH
Dew points down to -80°F
Extend bag life
Increase facility efficiency
Easy, low-cost maintenance - under $100/year average

Filter Performance:

1st Stage Water Separator:

Removes liquid water
Filters particulate down to 10 micron

2nd Stage Oil Coalescing Filter:

Removes bulk oils and aerosols
Filters particulate down to .01 micron

Min/Max Air Inlet Temperature: 150°F

Min/Max Operating Pressure: 175

Power Requirement: 120V

21999-1031:

Water Separator: #21999-0131

Replacement Element: #21999-0227

Oil Coalescing Filter: #21999-0131-Z-FD

Replacement Element: #21999-0202

21999-1032:

Water Separator: #21999-1034

Replacement Element: #21999-0228

Oil Coalescing Filter: #21999-1034-Z-FD

Replacement Element: #21999-0202-Z-SP

*Dryer flow rates based on 100°F at 175 PSI an outlet pressure of 100 PSI. (Minimum inlet pressure 80 PSI Lower inlet pressure and higher temperatures affect the performance and quality of the downstream air)

Tsunami Product Catalog

Dust Collector White Paper Screenshot

Dust Collector Dryer Cut Sheet

White Paper

2 Tower - Dust Collector Regenerative Dryer

ITEM #: 21999-1031

MIN. SYSTEM PRESSURE:

150 120 80

COLLECTOR CFM:

35 22 18

TANK SIZE: 60 Gallon

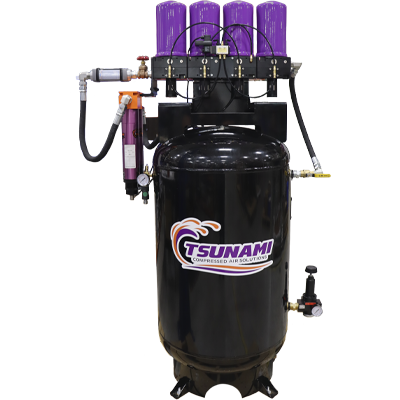

4 Tower - Dust Collector Regenerative Dryer

ITEM #: 21999-1032

MIN. SYSTEM PRESSURE:

150 120 80

COLLECTOR CFM:

70 45 30

TANK SIZE: 80 Gallon

DESCRIPTION	ITEM #	MIN. SYSTEM PRESSURE	COLLECTOR CFM	TANK SIZE	MSRP
2 Tower - Dust Collector Regenerative Dryer	21999-1031	150 120 80	35 22 18	60 Gallon	$6,445.00
4 Tower - Dust Collector Regenerative Dryer	21999-1032	150 120 80	70 45 30	80 Gallon	$10,272.00
