Tsunami Pure-10 Series

40 CFM Compressed Air Dryer

Regenerative Desiccant

The Pure-10 Series Regenerative Dryer is rated for 40 CFM airflow, and fitted for 10 Hp compressors. The Pure-10 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.

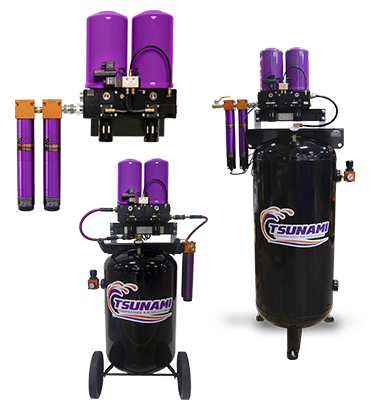

Pure 10 Series Image

Tsunami Pre Filtration

Tsunami pre-filtration includes the water separator and oil coalescing filter to remove liquid water, bulk oils and particulate.

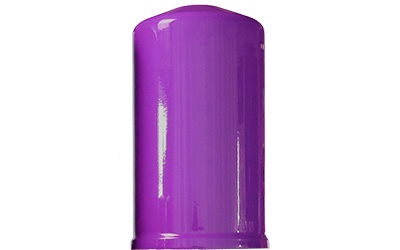

Regenerative Towers

Tsunami’s Regenerative Drying Technology uses sweep air to regenerate the towers during operation. It's like changing the desiccant every two minutes.

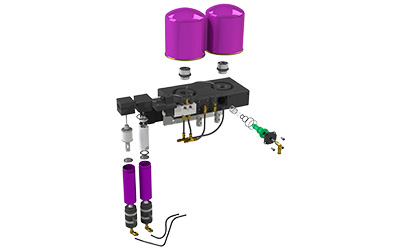

Efficient Construction

The Pure 10 is efficiently designed and constructed with very few moving parts, reducing potential stress points.

Features:

2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
Molecular Sieve Desiccant
Solenoid Valve Timer
Automatic Drains
Purge Exhaust Mufflers
Wall Mounting Brackets
Optional: C1D1 Compatible for hazardous locations
Heater pads available for cold temp applications
60-Gallon Storage Tank and Outlet Regulator (for tank models)
Wide Track Wheels and 30-Gallon Storage Tank with Portable Unit

Benefits:

Dryer Performance:

Low relative humidity - down to .01% RH
Dew points down to -80°F
Easy, low-cost maintenance - under $100/year average

Filter Performance:

1st Stage Water Separator:

Removes liquid water
Filters particulate down to 10 micron

2nd Stage Oil Coalescing Filter:

Removes bulk oils and aerosols
Filters particulate down to .01 micron

Min/Max Air Inlet Temperature: 150°F

Min/Max Operating Pressure: 175

Power Requirement: 120V or 220V

Rated For 10 Hp Compressors

Water Separator: #21999-0131

Replacement Element: #21999-0227

Oil Coalescing Filter: #21999-0131-Z-FD

Replacement Element: #21999-0202

Air Consumption Averages and Cycle Time

Item #	# of Towers	Orifice	CFM Consumption	Cycle Time	Tower Drying Time	# of Towers Drying	# of Towers Regen.
21999-1010	2	.030"	2.2	2 min	120 sec	1	1
21999-1010-220	2	.030"	2.2	2 min	120 sec	1	1
21999-1010-MM	2	.030"	2.2	2 min	120 sec	1	1
21999-1010-MM-220	2	.030"	2.2	2 min	120 sec	1	1
21999-0955	2	.030"	2.2	2 min	120 sec	1	1
21999-0955-220	2	.030"	2.2	2 min	120 sec	1	1
21999-0955-PP	2	.030"	2.2	2 min	120 sec	1	1

*Dryer flow rates based on 100°F at 175 PSI an outlet pressure of 100 PSI. (Minimum inlet pressure 80 PSI Lower inlet pressure and higher temperatures affect the performance and quality of the downstream air)

Tsunami Product Catalog

Pure Series Screenshot

Pure Series Dryers

Installation Instructions

23224_SMG_Tsunami_AirDryer_Pure10_21999-1010 - new colors - WEB-1

CFM: 40

ITEM #: 21999-1010

DRAIN: Float

NPT: ½" INLET / 1" OUTLET

WEIGHT: 60 lbs

DIMENSIONS: 26" x 25" x 8"

CFM: 40

ITEM #: 21999-1010-220

DRAIN: Float

NPT: ½" INLET / 1" OUTLET

WEIGHT: 60 lbs

DIMENSIONS: 26" x 25" x 8"

CFM: 40

ITEM #: 21999-1010-MM

DRAIN: Pneumatic

NPT: ½" INLET / 1" OUTLET

WEIGHT: 62 lbs

DIMENSIONS: 29" x 25" x 8"

CFM: 40

ITEM #: 21999-1010-MM-220

DRAIN: Pneumatic

NPT: ½" INLET / 1" OUTLET

WEIGHT: 62 lbs

DIMENSIONS: 29" x 25" x 8"

CFM: 40

ITEM #: 21999-1010-MM-24

DRAIN: Pneumatic

NPT: ½" INLET / 1" OUTLET

WEIGHT: 62 lbs

DIMENSIONS: 29" x 25" x 8"

MAX CFM	ITEM #	DRAIN	NPT	WEIGHT	DIMENSIONS (HWD)	MSRP
40	21999-1010	Float	½" INLET / 1" OUTLET	60 lbs	26" x 25" x 8"	$2,997.00
40	21999-1010-220	Float	½" INLET / 1" OUTLET	60 lbs	26" x 25" x 8"	$2,997.00
40	21999-1010-MM	Pneumatic	½" INLET / 1" OUTLET	62 lbs	29" x 25" x 8"	$3,371.00
40	21999-1010-MM-220	Pneumatic	½" INLET / 1" OUTLET	62 lbs	29" x 25" x 8"	$3,371.00
40	21999-1010-MM-24	Pneumatic	½" INLET / 1" OUTLET	62 lbs	29" x 25" x 8"	$3,371.00

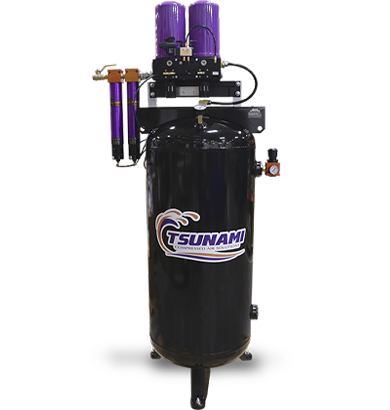

21999-0955 Pure 10 series tank dryer_new colors WEB-1

CFM: 40

ITEM #: 21999-0955

DRAIN: Pneumatic

NPT: ½" INLET / ½" OUTLET

WEIGHT: 190 lbs

DIMENSIONS: 72" x 36" x 23"

21999-0955 Pure 10 series tank dryer_new colors WEB-2

CFM: 40

ITEM #: 21999-0955-220

DRAIN: Pneumatic

NPT: ½" INLET / ½" OUTLET

WEIGHT: 190 lbs

DIMENSIONS: 72" x 36" x 23"

CFM: 40

ITEM #: 21999-0955-PP

DRAIN: Pneumatic

NPT: ½" INLET / ½" OUTLET

WEIGHT: 190 lbs

DIMENSIONS: 72" x 36" x 23"

MAX CFM	ITEM #	DRAIN	NPT	WEIGHT	DIMENSIONS (HWD)	MSRP
40	21999-0955	Pneumatic	½" INLET / ½" OUTLET	190 lbs	72" x 36" x 23"	$4,458.00
40	21999-0955-220	Pneumatic	½" INLET / ½" OUTLET	190 lbs	72" x 36" x 23"	$4,458.00
40	21999-0955-PP	Pneumatic	½" INLET / ½" OUTLET	190 lbs	72" x 36" x 23"	$6,362.00

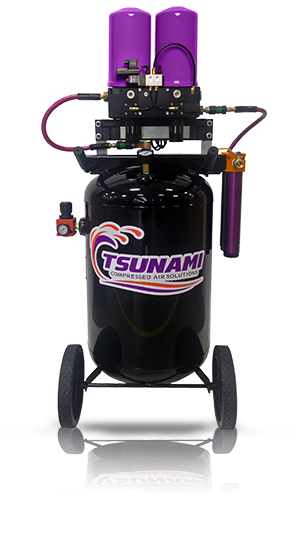

CFM: 40

ITEM #: 21999-0945

DRAIN: Float

NPT: ½" INLET / OUTLET

WEIGHT: 150 lbs

DIMENSIONS: 53" x 33" x 22"

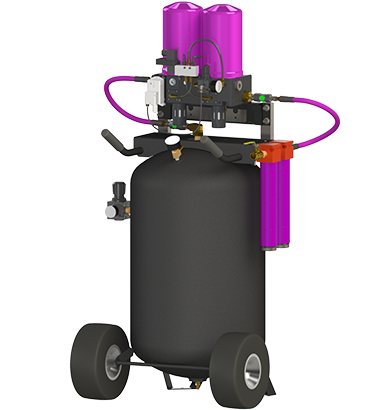

CFM: 40

ITEM #: 21999-0945-PP

DRAIN: Float

NPT: ½" INLET / OUTLET

WEIGHT: 150 lbs

DIMENSIONS: 53" x 33" x 22"

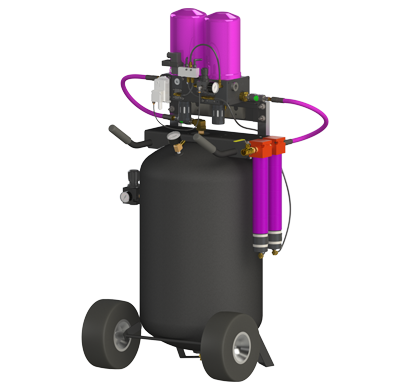

CFM: 40

ITEM #: 21999-0945-PP-MM

DRAIN: Pneumatic

NPT: ½" INLET / OUTLET

WEIGHT: 150 lbs

DIMENSIONS: 53" x 33" x 22"

MAX CFM	ITEM #	DRAIN	NPT	WEIGHT	DIMENSIONS (HWD)	MSRP
40	21999-0945	Float	½" INLET / OUTLET	150 lbs	53" x 33" x 22"	$3,994.00
40	21999-0945-PP	Float	½" INLET / OUTLET	150 lbs	53" x 33" x 22"	$5,863.00
40	21999-0945-PP-MM	Pneumatic	½" INLET / OUTLET	150 lbs	53" x 33" x 22"	$6,573.00
