Tsunami Pure-5 Series

15 CFM Compressed Air Dryer

Regenerative Desiccant

The Pure-5 Series Regenerative Dryer is rated for 15 CFM airflow, and fitted for 5 Hp compressors. The Pure-5 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.

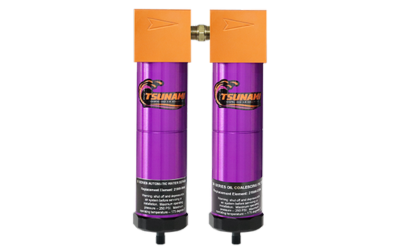

Tsunami Pre Filtration

Tsunami pre-filtration includes the water separator and oil coalescing filter to remove liquid water, bulk oils and particulate.

Regenerative Towers

Tsunami’s Regenerative Drying Technology uses sweep air to regenerate the towers during operation. It's like changing the desiccant every two minutes.

Efficient Construction

Pure Series Dryers are efficiently designed and constructed with very few moving parts, reducing potential stress points.

Features:

2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
Molecular Sieve Desiccant
Solenoid Valve Timer
Automatic Drains
Purge Exhaust Mufflers
Wall Mounting Brackets
Optional: C1D1 compatible for hazardous locations
Heater pads available for cold temp application
1-Gallon Storage Tank and Outlet Regulator (for tank models)
Easy-Carrying with Portable Unit

Benefits:

Dryer Performance:

Low relative humidity - down to .01% RH
Dew points down to -80°F
Easy, low-cost maintenance - under $100/year average

Filter Performance:

1st Stage Water Separator:

Removes liquid water
Filters particulate down to 10 micron

2nd Stage Oil Coalescing Filter:

Removes bulk oils and aerosols
Filters particulate down to .01 micron

Min/Max Air Inlet Temperature: 150°F

Min/Max Operating Pressure: 175

Power Requirement: 120V

Compressor Size Rating: 5 Hp

Tank Model: 1-Gallon Storage Tank

Water Separator: #21999-0390

Replacement Element: #21999-0846

Oil Coalescing Filter: #21999-0390-Z-FD

Replacement Element: #21999-0394

Air Consumption Averages and Cycle Time
Item #	# of Towers	Orifice	CFM Consumption	Cycle Time	Tower Drying Time	# of Towers Drying	# of Towers Regen.
21999-1105 / 1100	2	.018"	1	2 min	120 sec	1	1
21999-1105-MM	2	.018"	1	2 min	120 sec	1	1

*Dryer flow rates based on 100°F at 175 PSI an outlet pressure of 100 PSI. (Minimum inlet pressure 80 PSI Lower inlet pressure and higher temperatures affect the performance and quality of the downstream air)

Tsunami Product Catalog

Pure Series Screenshot

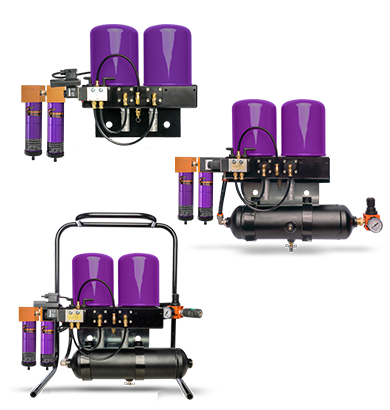

Pure Series Dryers

Installation Instructions

Wall-Mounted

The wall-mounted model comes with all the necessary brackets and hardware to mount the dryer to a wall or right on a piece of equipment.

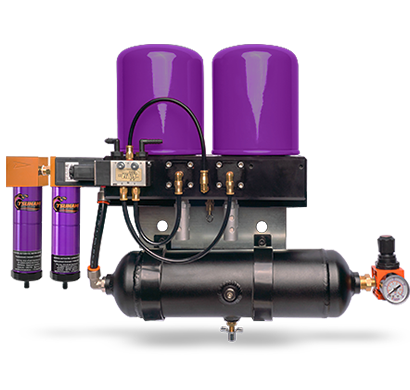

Tank Attachment

The tank model includes a 1-galllon storage tank attachment to maximize laminar air flow during the regeneration cycles.

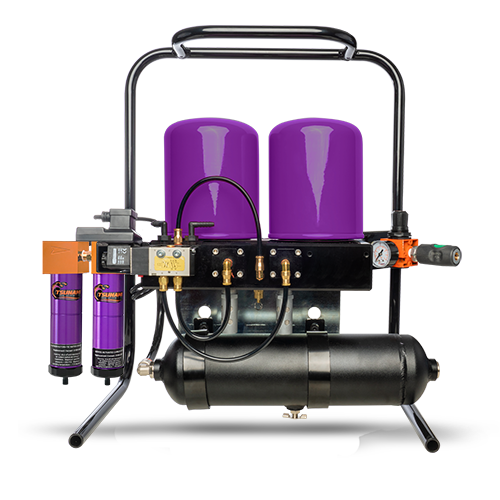

23224_SuburbanManufacturing_Tsunami_PURE-5T_with-stand NEW COLORS (web)-1

Portable

The portable model comes with the 1-gallon storage tank and a carrying handle; ideal for distributors with prospective customers or to diagnose air problems.

CFM: 15

ITEM #: 21999-1105

DRAIN: Float

NPT: ¼" INLET / ½" OUTLET

WEIGHT: 42 lbs

DIMENSIONS: 15" x 22" x 8"

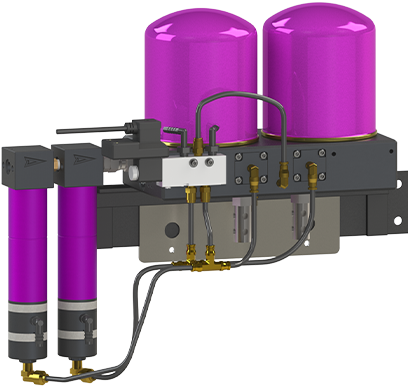

Tsunami Compressed Air Solutions Pure 1,3,5 Dryer with Moisture Minder filter Drain_WEB

CFM: 15

ITEM #: 21999-1105-MM

DRAIN: Pneumatic

NPT: ¼" INLET / ½" OUTLET

WEIGHT: 42 lbs

DIMENSIONS: 18" x 22" x 8"

CFM: 15

ITEM #: 21999-1105-T

DRAIN: Float

NPT: ¼" INLET / ¼" OUTLET

WEIGHT: 50 lbs

DIMENSIONS: 17" x 24" x 8"

CFM: 15

ITEM #: 21999-1105-T-MM

DRAIN: Pneumatic

NPT: ¼" INLET / ¼" OUTLET

WEIGHT: 51 lbs

DIMENSIONS: 20" x 24" x 8"

CFM: 15

ITEM #: 21999-1100

DRAIN: Float

NPT: ¼" INLET / ¼" OUTLET

WEIGHT: 50 lbs

DIMENSIONS: 23" x 25" x 12"

CFM: 15

ITEM #: 21999-1100

DRAIN: Pneumatic

NPT: ¼" INLET / ¼" OUTLET

WEIGHT: 51 lbs

DIMENSIONS: 23" x 25" x 12"

MODEL	ITEM #	DRAIN	NPT	WEIGHT	DIMENSIONS (IN)	MSRP
Wall-Mount	21999-1105	Float	¼" INLET / ½" OUTLET	42 lbs	15 x 22 x 8	$1,938.00
Wall-Mount	21999-1105-MM	Pneumatic	¼" INLET / ½" OUTLET	42 lbs	18 x 22 x 8	$2,198.00

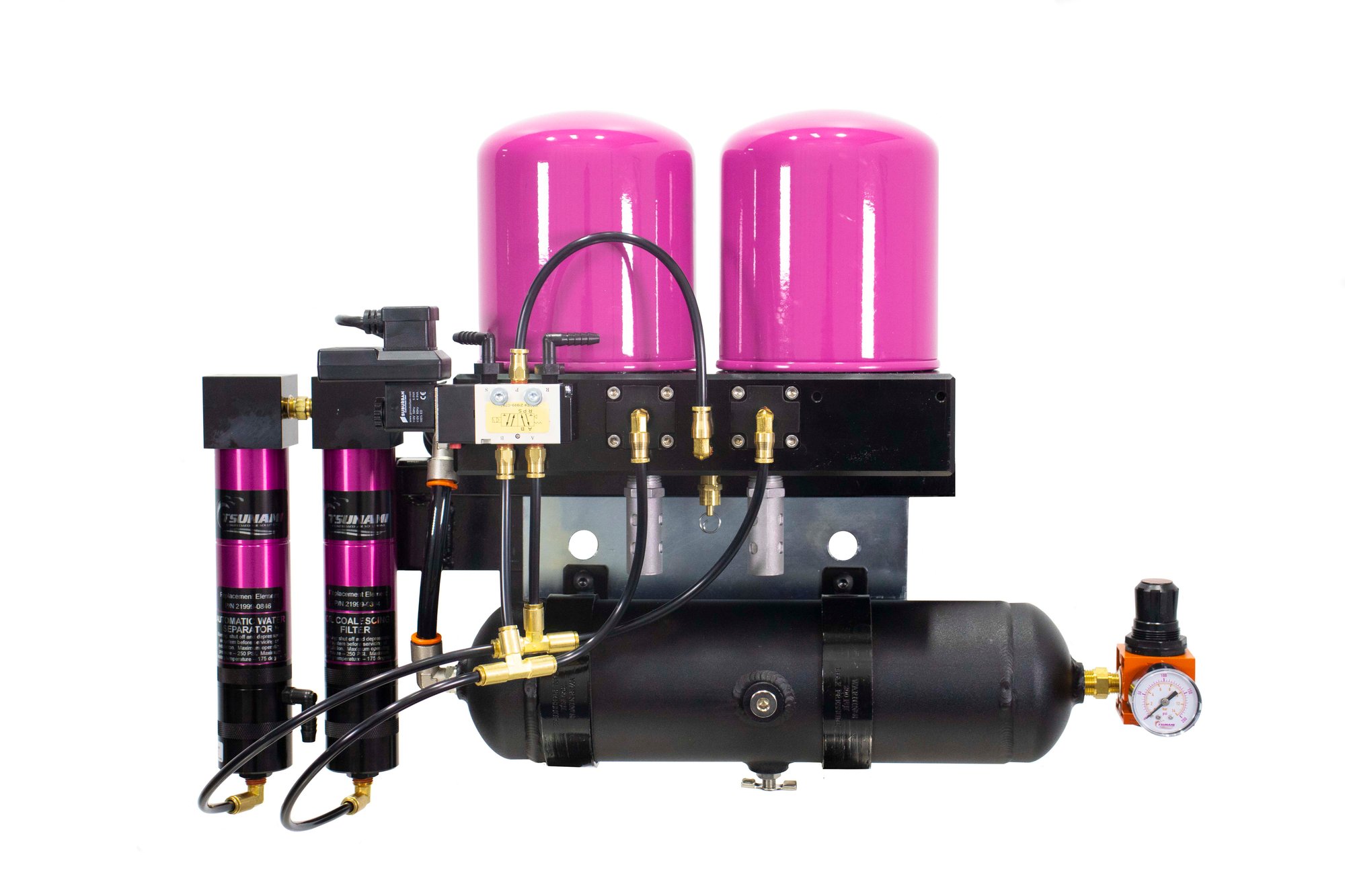

Tank	21999-1105-T	Float	¼" INLET / ½" OUTLET	50 lbs	17 x 24 x 8	$2,358.00
Tank	21999-1105-T-MM	Pneumatic	¼" INLET / ½" OUTLET	51 lbs	20 x 24 x 8	$2,620.00
Portable	21999-1100	Float	¼" INLET / ½" OUTLET	50 lbs	23 x 25 x 12	$2,611.00
Portable	21999-1100-MM	Pneumatic	¼" INLET / ½" OUTLET	51 lbs	23 x 25 x 12	$3,003.00
