Tsunami Ultra-20 Series

80 CFM Compressed Air Dryer

Regenerative Desiccant

The Ultra-20 Series Regenerative Dryer is rated for 80 CFM airflow, and fitted for 20 Hp compressors. The Ultra-20 system uses a Programmable Logic Controller (PLC) to cycle the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.

Ultra 20 Series Image-1

Tsunami Pre Filtration

Tsunami pre-filtration includes the water separator and oil coalescing filter to remove liquid water, bulk oils and particulate.

PLC Controller

The Programmable Logic Controller cycles the dryers and pneumatic drains - optimizing efficiency and allowing for dryer expansion.

tsunami ultra series expandable card flip

Factory Expandable

Ultra Series Dryers are factory expandable. Increase the dryer capacity as your business's air demands increase.

Features:

2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
Molecular Sieve Desiccant
Programmable Logic Controller
Automatic Pneumatic Drains
Purge Exhaust Mufflers
Wall Mounting Brackets
Optional: C1D1 Compatible for hazardous locations
Heater pads available for cold temp applications
80-Gallon Storage Tank & Outlet Regulator (for tank models)
3-Year Standard Warranty

Benefits:

Dryer Performance:

Low relative humidity - down to .01% RH
Dew points down to -80°F
Easy, low-cost maintenance - under $100/year average

Filter Performance:

1st Stage Water Separator:

Removes liquid water
Filters particulate down to 10 micron

2nd Stage Oil Coalescing Filter:

Removes bulk oils and aerosols
Filters particulate down to .01 micron

Min/Max Air Inlet Temperature: 150°F

Min/Max Operating Pressure: 175

Power Requirement: 120V

Rated For 20 Hp Compressors

Water Separator Replacement Element: #21999-0228

Oil Coalescing Filter Replacement Element: #21999-0202-Z-SP

Air Consumption Averages and Cycle Time

Item #	# of Towers	Orifice	CFM Consumption	Cycle Time	Tower Drying Time	# of Towers Drying	# of Towers Regen.
21999-0720	4	.030"	4.4	2 min	120 sec	2	2
21999-0820	4	.030"	4.4	2 min	120 sec	2	2

*Dryer flow rates based on 100°F at 175 PSI an outlet pressure of 100 PSI. (Minimum inlet pressure 80 PSI Lower inlet pressure and higher temperatures affect the performance and quality of the downstream air)

Tsunami Product Catalog

Ultra Series Dryers Cut Sheets

Ultra Series Dryers

Installation Instructions

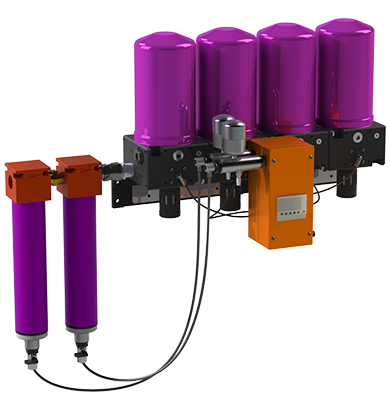

21999-0720 tsunami ultra 20 regenerative dryer WEB-1

MAX CFM: 80

ITEM #: 21999-0720

DRAIN: Pneumatic

NPT: 1" INLET / OUTLET

WEIGHT: 118 lbs

DIMENSIONS: 30" x 36" x 12"

MOUNT: Wall

21999-0820 80 cfm tsunami ultra series tank mounted dryer WEB

MAX CFM: 80

ITEM #: 21999-0820

DRAIN: Pneumatic

NPT: 1" INLET / OUTLET

WEIGHT: 381 lbs

DIMENSIONS: 69" x 51" x 27"

MOUNT: Tank - 80 gal.

MAX CFM	ITEM #	DRAIN	NPT	WEIGHT	DIMENSIONS (HWD)	MOUNT	MSRP
80	21999-0720	Pneumatic	1" INLET / OUTLET	118 lbs	30" x 36" x 12"	Wall	$6,927.00
80	21999-0820	Pneumatic	1" INLET / OUTLET	381 lbs	69" x 51" x 27"	Tank - 80 gal.	$9,211.00
