Tsunami Filter Package #5

3-Stage Filtration

High Quality Air Filtration

Tsunami filtration package #5 includes: (1) Water separator, (1) Oil coalescing filter, (1) Activated carbon filter and a mounting bracket.

Tsunami filters are machined from the highest quality materials and are anodized inside and out to ensure ultimate durability against corrosion and trapped contaminates. The Tsunami Water Separator removes water, up to one quart per minute, and filters particulate down to 10 micron. The Oil Coalescing Filter removes oil aerosols down to .001 ppm and particulates down to .01 micron. The Activated Carbon filter removes oil vapor down to .003, and any taste or odor.

Premium Materials

Tsunami filters are machined from high-quality 6061 Aircraft Aluminum and then anodized inside and out - providing industrial strength and preventing corrosion and rust.

Oversized Tube Length

Oversized tube length allows both gravity and velocity to assist in the removal of water air contaminates.

Removable Bottom Cap

Removable bottom cap provides ease of service and machined drain port allows for various drain options.

Features:

Machined from 6061 aircraft aluminum
Minimal maintenance required with easy-to-service float drain
Available for systems with a flow rating from 20 to 120 CFM
Made in America

Benefits:

Point-of-use protection for air tools and pneumatic equipment
Removes large amounts of moisture
Filters particulate down to .01 micron at 99.9% efficiency
Removes oil vapors down to .003 ppm
Removes odor and taste for breathable air systems

Tsunami Product Catalog

Tsunami Filtration Installation Instructions

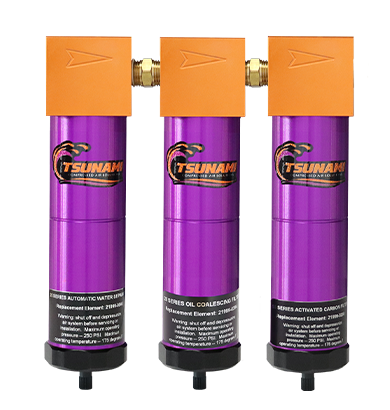

21999-0421 20 CFM Tsunami Filtration_Package 5_web

MAX CFM: 20

ITEM #: 21999-0421

NPT: ¼"

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 4 lbs

DIMENSIONS: 9½" x 8" x 2½"

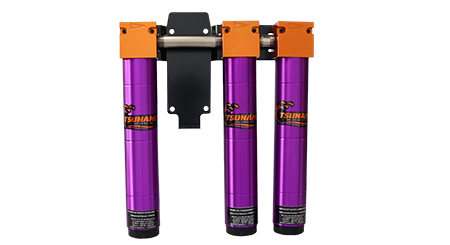

21999-0255 50 CFM 3 Stage Filtration NEW web-2

MAX CFM: 50

ITEM #: 21999-0255

NPT: ½"

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 13½ lbs

DIMENSIONS: 17" x 13" x 3½"

MAX CFM: 50

ITEM #: 21999-0255-R

NPT: ½"

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 13½ lbs

DIMENSIONS: 17" x 13" x 3½"

MAX CFM: 50

ITEM #: 21999-0256

NPT: 1"

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 21 lbs

DIMENSIONS: 21" x 13" x 6½"

MAX CFM	ITEM #	PORT SIZE (NPT)	DRAIN	MAX PSI	MAX °F	WEIGHT (LBS)	DIMENSION (IN)	MSRP
20	21999-0421	¼"	FLOAT	250	175	4	9½ x 8 x 2½	$607.00
50	21999-0255	½"	FLOAT	250	175	13½	17 x 13 x 3½	$932.00
50	21999-0255-R	½"	FLOAT	250	175	13½	17 x 13 x 6½	$1,490.00
120	21999-0256	1"	FLOAT	250	175	21	21 x 13 x 6½	$1,490.00

20 Series Water Separator Service Kit

Item #: 21999-0846

50 Series Water Separator Service Kit

Item #: 21999-0227

120/240 Series Water Separator Service Kit

Item #: 21999-0228

20 Series Oil Coalescing Filter Service Kit

Item #: 21999-0394

oil coalescing filter element replacement 21999-0202_web

50 Series Oil Coalescing Filter Service Kit

Item #: 21999-0202

20 Series Activated Carbon Filter Service Kit

Item #: 21999-0395

50 Series Activated Carbon Filter Service Kit

Item #: 21999-0200

120/240 Series Activated Carbon Filter Service Kit

Item #: 21999-1072

DESCRIPTION	ITEM #	MSRP
20 Series Water Separator Service Kit	21999-0846	$62.00
50 Series Water Separator Service Kit	21999-0227	$75.00
120/240 Series Water Separator Service Kit	21999-0228	$111.00
20 Series Oil Coalescing Filter Service Kit	21999-0394	$68.00
50/120 Series Oil Coalescing Filter Service Kit	21999-0202	$81.00
20 Series Activated Carbon Filter Service Kit	21999-0395	$81.00
50 Series Activated Carbon Filter Service Kit	21999-0200	$188.00
120 Series Activated Carbon Filter Service Kit	21999-1072	$277.00
