Tsunami

Oil Coalescing Filters

High Quality Air Filtration

Tsunami oil coalescing filters deliver high grade compressed air and protect critical equipment from oil aerosols and particulates. Tsunami oil coalescing filters use a non-wicking drain layer secured to the outside support core to separate oil and water from the air flow and drain the liquid to the filter sump.

Request More Info    Buy Online

filter head-1

Premium Materials

Tsunami filters are machined from high-quality 6061 Aircraft Aluminum and then anodized inside and out - providing industrial strength and preventing corrosion and rust.

oversized tube length

Oversized Tube Length

Oversized tube length allows both gravity and velocity to assist in the removal of water air contaminates.



removable bottom cap

Removable Bottom Cap

Removable bottom cap provides ease of service and machined drain port allows for various drain options.



Features:
  • Manufactured from borosilicate glass micro fibers bonded together with a resin binder
  • Chemical-resistant cores and layers support coalescing media
  • Non-Wicking layer collects and drains oil into drain sump of the filter housing, preventing entrainment
  • Available with float, electronic, or pneumatic drain options
  • Available for systems with a flow rating from 20 to 800 CFM
  • Made in America



Benefits:
  • Point-of-use protection for air tools and pneumatic equipment
  • Larger elements provide more surface area to capture oils an particulates while minimizing pressure drop
  • Removes oil, oil mist and particulates down to .01 micron at 99.9% efficiency



Tsunami Catalog Screenshot

Tsunami Product Catalog



764-2092 225-800 Series Filters

225 - 800 CFM Installation Instructions

filters instructiosn

Tsunami Filtration Installation Instructions

Drain options

Tsunami Oil Coalescing Filters come with one of the following drain options:

Float Drain

Float Drain

Standard Drain

Contains a float within the device that normally seats on a small orifice. When liquid enters the drain the float rises off its seat, exposing the orifice and allowing liquid to discharge through the stem.

Moisture Minder Pneumatic Filter Drain

Pneumatic Drain

Requires Pilot Signal

A pneumatically actuated drain valve efficiently removes liquids from the filters using an intermittent pilot signal. Water separators, up to 120 CFM, use the filter drain with an internal reservoir (pictured above). Larger units, 225 CFM+, have a head-mounted pneumatic drain valve with an external reservoir.

21999-0177 Electronic Drain Valve w shadow

Electronic Drain

Requires Electricity

Incorporates a solenoid valve and an electric timer with two on/off settings. ON is the setting for the amount of time the valve needs to stay open (0.5 to 10 seconds) and OFF is the time between openings (0.5 to 45 minutes).

Sizing & Ordering Information

To view product images, click on the desired part number and the image box will appear towards the top of the chart.

×

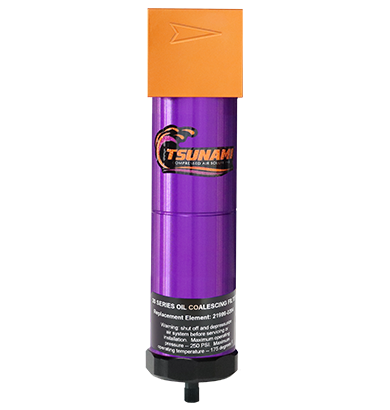

21999-0390-Z-FD 20 CFM oil coalescing filter_web bucket

CFM: 20

ITEM #: 21999-0390-Z-FD

NPT: ¼

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 1½ lbs

DIMENSIONS: 8½" x 2" x 2"

×
21999-0390-Z-ED_web

CFM: 20

ITEM #: 21999-0390-Z-ED

NPT: ¼

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 2 lbs

DIMENSIONS: 12" x 2" x 2"

×

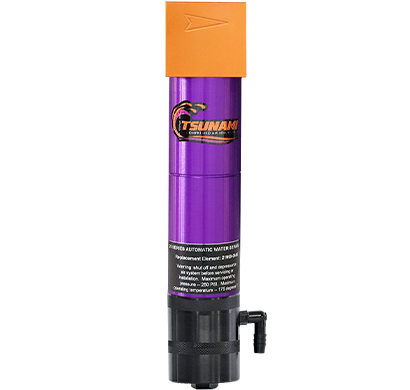

21999-0390-Z-MM 20 CFM Water Separator_WEB

CFM: 20

ITEM #: 21999-0390-Z-MM

NPT: ¼

DRAIN: PNEUMATIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 2 lbs

DIMENSIONS: 10½" x 2" x 2"

×

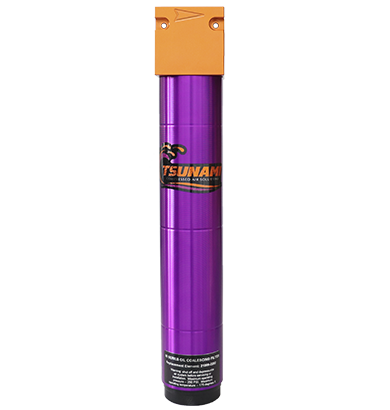

21999-0131-Z-FD 50 cfm oil coalescing filter_web bucket

CFM: 50

ITEM #: 21999-0390-Z-MM

NPT: ½

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 3½ lbs

DIMENSIONS: 14½" x 2½" x 2½"

×
21999-0131-ED_410x390-1

CFM: 50

ITEM #: 21999-0131-Z-ED

NPT: ½

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 4½ lbs

DIMENSIONS: 17½" x 5½" x 4"

×
21999-0131-MM_web

CFM: 50

ITEM #: 21999-0131-Z-MM

NPT: ½

DRAIN: PNEUMATIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 4 lbs

DIMENSIONS: 17" x 2½" x 2½"

×

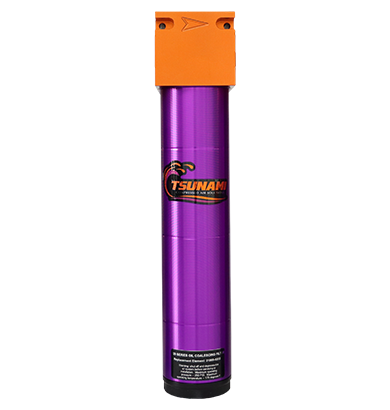

21999-1034-Z-FD 120 cfm oil coalescing filter_web bucket-1

CFM: 120

ITEM #: 21999-1034-Z-FD

NPT: ¾

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9 lbs

DIMENSIONS: 16" x 3½" x 3½"

×
21999-1034-Z-ED_web

CFM: 120

ITEM #: 21999-1034-Z-ED

NPT: ¾

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9½ lbs

DIMENSIONS: 18" x 6" x 4½"

×
21999-1034-MM_web

CFM: 120

ITEM #: 21999-1034-Z-MM

NPT: ¾

DRAIN: PNEUMATIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9 lbs

DIMENSIONS: 18" x 3½" x 3½"

×
21999-0082-Z-FD 120 cfm oil coalescing filter_web bucket

CFM: 120

ITEM #: 21999-0082-Z-FD

NPT: 1

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9 lbs

DIMENSIONS: 16" x 3½" x 3½"

×
21999-0082-ED_web

CFM: 120

ITEM #: 21999-0082-Z-ED

NPT: 1

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9½ lbs

DIMENSIONS: 18" x 6" x 4½"

×
21999-1034-MM_web

CFM: 120

ITEM #: 21999-0082-Z-MM

NPT: 1

DRAIN: PNEUMATIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 5½ lbs

DIMENSIONS: 18" x 3½" x 3½"

×

MAX CFM: 225

ITEM #: 21999-1150-Z-FD

NPT: 1½

DRAIN: FLOAT

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 11 lbs

DIMENSIONS: 22" x 4.5" x 4.5"

×

MAX CFM: 225

ITEM #: 21999-1150-Z-ED

NPT: 1½

DRAIN:ELECTRONIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 12 lbs

DIMENSIONS: 25" x 4.5" x 4.5"

×

MAX CFM: 225

ITEM #: 21999-1150-Z-MM

NPT: 1½

DRAIN: PNEUMATIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 12 lbs

DIMENSIONS: 26" x 4.5" x 8.5"

×

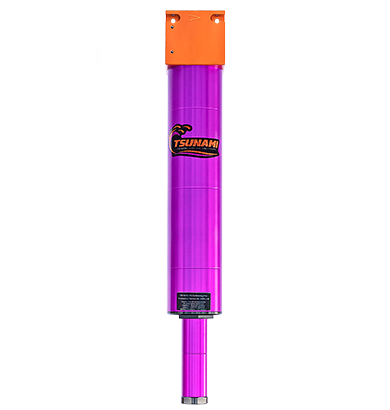

21999-1096-Z-FD 300 cfm oil coalescing filter_web bucket

CFM: 300

ITEM #: 21999-1096-Z-FD

NPT: 1½

DRAIN: FLOAT

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 11½ lbs

DIMENSIONS: 31" x 4½" x 6½"

×
21999-1096-Z-ED

CFM: 300

ITEM #: 21999-1096-Z-ED

NPT: 1½

DRAIN: ELECTRONIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 12½ lbs

DIMENSIONS: 32" x 4½" x 10"

×
21999-1096-Z-MM WEB

CFM: 300

ITEM #: 21999-1096-Z-MM

NPT: 1½

DRAIN: PNEUMATIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 12½ lbs

DIMENSIONS: 32" x 4½" x 10"

×

MAX CFM:450

ITEM #: 21999-1160-Z-FD

NPT: 2

DRAIN: FLOAT

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 16½ lbs

DIMENSIONS: 26" x 5.5" x 5.5"

×

MAX CFM:450

ITEM #: 21999-1160-Z-ED

NPT: 2

DRAIN: ELECTRONIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 17½ lbs

DIMENSIONS: 28" x 5.5" x 5.5"

×

MAX CFM:450

ITEM #: 21999-1160-Z-MM

NPT: 2

DRAIN: PNEUMATIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 18½ lbs

DIMENSIONS: 29" x 5.5" x 9.5"

×

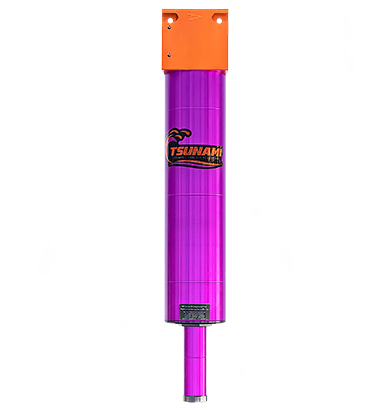

21999-1120-Z-FD 600 cfm oil coalescing filter_web bucket-1

CFM: 600

ITEM #: 21999-1120-Z-FD

NPT: 2

DRAIN: FLOAT

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 17 lbs

DIMENSIONS: 31" x 5½" x 5½"

×
21999-1120-ED_web

CFM: 600

ITEM #: 21999-1120-Z-ED

NPT: 2

DRAIN: ELECTRONIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 18 lbs

DIMENSIONS: 34" x 5½" x 5½"

×

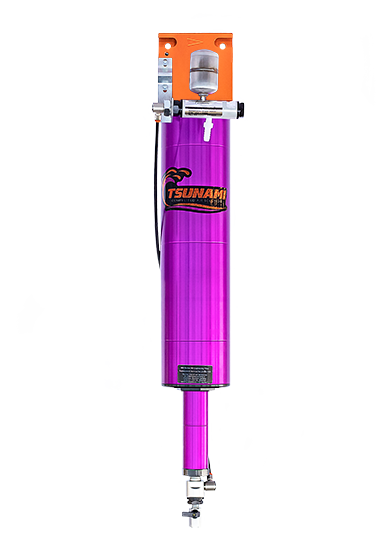

OilCoalescingFilter_21999-1120-Z-MM_WithPneumaticDrain WEB

CFM: 600

ITEM #: 21999-1120-Z-MM

NPT: 2

DRAIN: PNEUMATIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 19 lbs

DIMENSIONS: 35" x 5½" x 5½"

×

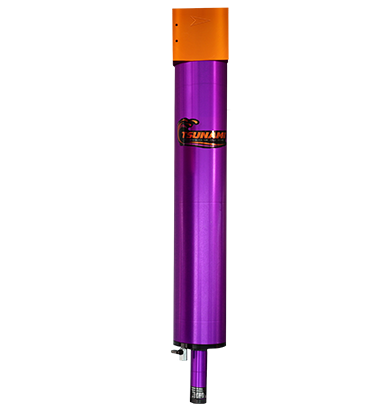

21999-0960-Z-FD 800 cfm oil coalescing filter_web bucket

CFM: 800

ITEM #: 21999-0960-Z-FD

NPT: 3

DRAIN: FLOAT

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 45 lbs

DIMENSIONS: 43" x 6" x 6"

×

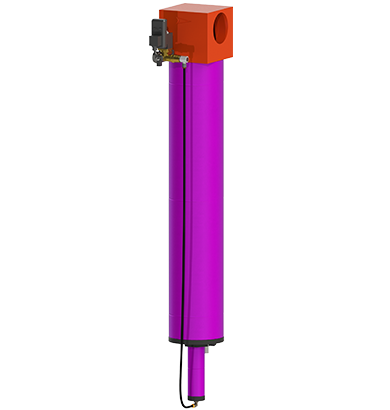

21999-0960-Z-ED_web bucket

CFM: 800

ITEM #: 21999-0960-Z-ED

NPT: 3

DRAIN: ELECTRONIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 46 lbs

DIMENSIONS: 43" x 6" x 6"

×
21999-0960-MM_web

CFM: 800

ITEM #: 21999-0960-Z-MM

NPT: 3

DRAIN: PNEUMATIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 46 lbs

DIMENSIONS: 43" x 6" x 6"

MAX CFM ITEM # PORT SIZE (NPT) DRAIN MAX PSI MAX °F WEIGHT DIMENSIONS (HWD) MSRP
20
21999-0390-Z-FD
¼
FLOAT
250
175
1½
8½" x 2" x 2"
$193.00
20
21999-0390-Z-ED
¼
ELECTRONIC
250
175
2
12" x 2" x 2"
$284.00
20
21999-0390-Z-MM
¼
PNEUMATIC
250
175
2
10½" x 2" x 2"
$284.00
50
21999-0131-Z-FD
½
FLOAT
250
175
3½
14½" x 2½" x 2½"
$320.00
50
21999-0131-Z-ED
½
ELECTRONIC
250
175
4½
17½" x 5½" x 4"
$404.00
50
21999-0131-Z-MM
½
PNEUMATIC
250
175
4
17" x 2½" x 2½"
$404.00
120
21999-1034-Z-FD
¾
FLOAT
250
175
9
16" x 3½" x 3½"
$380.00
120
21999-1034-Z-ED
¾
ELECTRONIC
250
175
9½
18" x 6" x 4½"
$471.00
120
21999-1034-Z-MM
¾
PNEUMATIC
250
175
9
18" x 3½" x 3½"
$471.00
120
21999-0082-Z-FD
1
FLOAT
250
175
9
16" x 3½" x 3½"
$380.00
120
21999-0082-Z-ED
1
ELECTRONIC
250
175
9½
18" x 6" x 4½"
$471.00
120
21999-Z-MM
1
PNEUMATIC
250
175
5½
18" x 3½" x 3½"
$471.00
225
21999-1150-Z-FD
1½
FLOAT
200
175
11
22" x 4.5" x 4.5"
$1,225.00
225
21999-1150-Z-ED
1½

ELECTRONIC
200
175
12
25" x 4.5" x 4.5"

$1,310.00
225
21999-1150-Z-MM
1½
PNEUMATIC
200
175
12
26" x 4.5" x 8.5"
$1,755.00
300
21999-1096-Z-FD
1½
FLOAT
200
175
11½
31" x 4½" x 6½"
$1,338.00
300
21999-1096-Z-ED
1½
ELECTRONIC
200
175
12½
32" x 4½" x 10"
$1,473.00
300
21999-1096-Z-MM
1½
PNEUMATIC
200
175
12½
32" x 4½" x 10"
$1,918.00
450
21999-1160-Z-FD
2
FLOAT
200
175
16½
26" x 5.5" x 5.5"
$1,498.00
450
21999-1160-Z-ED
2
ELECTRONIC
200
175
17½
28" x 5.5" x 5.5"
$1,584.00
450
21999-1160-Z-MM
2
PNEUMATIC
200
175
18½
29" x 5.5" x 9.5"
$2,028.00
600
21999-1120-Z-FD
2
FLOAT
200
175
17
31" x 5½" x 5½"
$1,661.00
600
21999-1120-Z-ED
2
ELECTRONIC
200
175
18
34" x 5½" x 5½"
$1,747.00
600
21999-1120-Z-MM
2
PNEUMATIC
200
175
19
35" x 5½" x 5½"
$2,191.00
800
21999-0960-Z-FD
3
FLOAT
200
175
45
43" x 6" x 6"
$2,983.00
800
21999-0960-Z-ED
3
ELECTRONIC
200
175
46
43" x 6" x 6"
$3,066.00
800
21999-0960-Z-MM
3
PNEUMATIC
200
175
46
43" x 6" x 6"
$3,524.00
Buy Online

FIlter accessories

Sold separately.

×

Drain Tube Kit - 10 Pack

Item #: 21999-0201

×
21999-0867 20 Series Mounting Bracket

Mounting Bracket -20 Series

Item #: 21999-0867

×
21999-0144_490x310_web

Mounting Bracket - 50 & 120 Series

Item#: 21999-0144

×

Mounting Bracket - 225/300/450/600 Series

Item #: 21999-1126

DESCRIPTION ITEM # MSRP
Drain Tube Kit - 10 Pack
21999-0201
$123.00
Mounting Bracket - 20 Series
21999-0867
$20.00
Mounting Bracket - 50 & 120 Series
21999-0144
$60.00
Mounting Bracket - 225/300/450/600 Series

21999-1126
$135.00

oil coalescing filter service parts

Includes coalescing element, baffle, adapter, o-rings, and lock nut.

×
21999-0394_web

20 Series Oil Coalescing Filter Service Kit (Pure-1, 3, 5 Regenerative Dryers)

ITEM #: 21999-0394

×

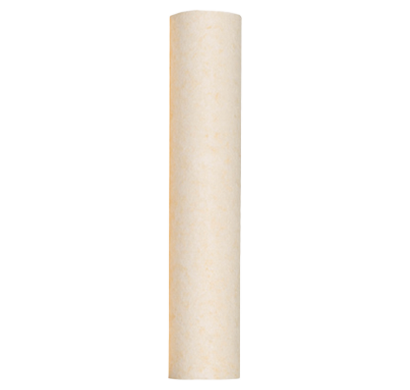

oil coalescing filter element replacement 21999-0202_web

50 / 120 / 240 Series Oil Coalescing Filter Service Kit (Pure-7, 10 Regenerative Dryers)

*240 Series requires 2 kits

ITEM #: 21999-0202

×

Ultra Model Regenerative Dryer Oil Coalescing Service Kit

ITEM #: 21999-0202-Z-SP

×

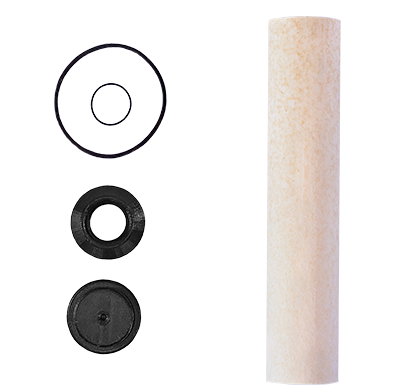

21999-1099_updated_web

225/300 Series Oil Coalescing Filter Service Kit

ITEM #: 21999-1099



×

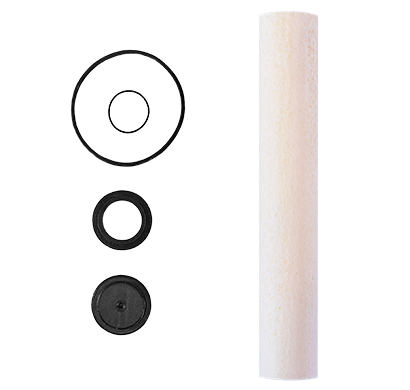

21999-1122_updated_web

450/600 Series Oil Coalescing Filter Service Kit

ITEM #: 21999-1122

×

800 Series Oil Coalescing Filter Service Kit

ITEM #: 21999-1069

×

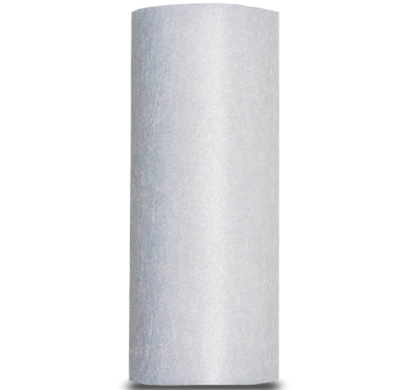

21999-0823_web

20 Series Oil Coalescing Element - 5 Pack

ITEM #: 21999-0823

×

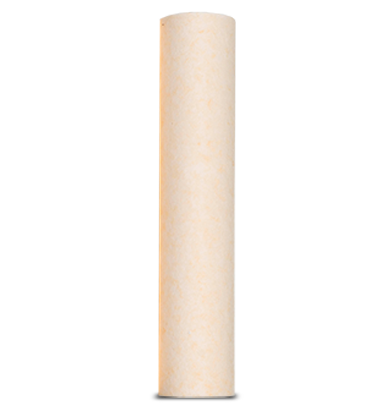

21999-0825 Tsunami 50-120-240 Series Oil Coalescing Element
50 / 120 / 240 Oil Coalescing Element - 5 Pack

ITEM #: 21999-0825

×

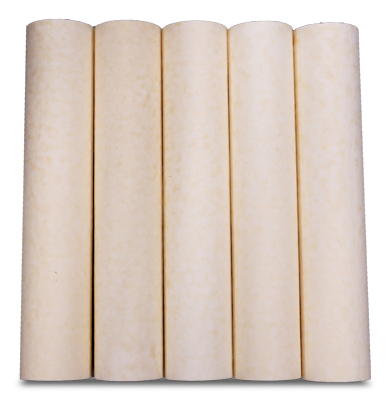

21999-0828 Ultra Series Coalescing Filter 5 pack

Ultra Regenerative Dryer Oil Coalescing Element - 5 Pack

ITEM #: 21999-0828

DESCRIPTION ITEM # MSRP
20 Series Oil Coalescing Filter Service Kit (Pure-1, 3, 5 Regenerative Dryers)
21999-0394
$68.00
50 / 120 / 240 Series Oil Coalescing Filter Service Kit (Pure-7, 10 Regenerative Dryers) (240 Series requires 2 kits)

21999-0202
$81.00
Ultra Model Regenerative Dryer Oil Coalescing Service Kit
21999-0202-Z-SP
$93.00
225/300 Series Oil Coalescing Filter Service Kit
21999-1099
$547.00
450/600 Series Oil Coalescing Filter Service Kit
21999-1122
$675.00
800 Series Oil Coalescing Filter Service Kit
21999-1069
$1,160.00
20 Series Oil Coalescing Element - 5 Pack
21999-0823
$160.00
50 / 120 / 240 Oil Coalescing Element - 5 Pack

21999-0825
$225.00
Ultra Regenerative Dryer Oil Coalescing Element - 5 Pack
21999-0828
$284.00

Product Videos

View All Videos

Related Articles
1 min read

3 Types of Air Compressor Filters

Feb 6, 2024 by Tsunami Team

It's important to take care of compressed air systems, and one of the best ways is with air filters. There are three...
1 min read

How an Air Water Separator Works

Feb 6, 2024 by Tsunami Team

Water separators play an extremely important role in compressed air applications. Water in an air system can be the...
2 min read

Does Your Compressed Air System Need an Air Filter?

Jan 30, 2024 by Tsunami Team

Air compressors play an important role in several different industries and applications. When your air compressor is...
View All Articles
Suburban_Manufacturing_Monticello
Contact

Go Suburban Home Page

10531 Dalton Ave NE

Monticello, MN 55362



1.800.782.5752

Contact Us

OUR BRANDS
NEWSLETTER SIGN-UP

Subscribe now to receive news and exclusive offers.



SIGN UP

© 2024 Suburban Manufacturing

Facebook Linkedin YouTube
Return to top
