Tsunami Filter Package #8

Water Separator with Regulator

Removes Water and Air Contaminants

Tsunami filtration package #8 includes: (1) Water separator, (1) Regulator and a mounting bracket.

Tsunami filters are machined from the highest quality materials and are anodized inside and out to ensure ultimate durability against corrosion and trapped contaminates. The Tsunami Water Separator removes water, up to one quart per minute, and filters particulate down to 10 micron. The Regulator allows pressure control to ensure downstream components do not exceed their maximum operating pressures.

Air Pressure Regulator

The pressure air regulator allows the operator to adjust the air pressure depending on the application or air tool being used.

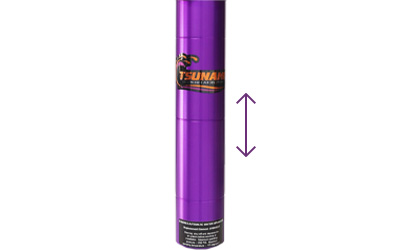

Oversized Tube Length

Oversized tube length allows both gravity and velocity to assist in the removal of water air contaminates.

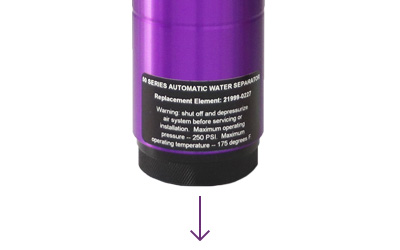

Removable Bottom Cap

Removable bottom cap provides ease of service and machined drain port allows for various drain options.

Features:

Oversized tube length allows both gravity and velocity to assist in the removal of water and air contaminates
Removable bottom cap provides ease of service
Machined drain port allows for various drain capabilities
Mounting bracket included
Made in America

Benefits:

Removes bulk liquids
Filters particulate down to 10 micron at 99% efficiency
Filters particulate down to 1 micron at 95% efficiency
Regulator provides optimal air pressure to maximize efficiency

Tsunami Product Catalog

Tsunami Filtration Installation Instructions

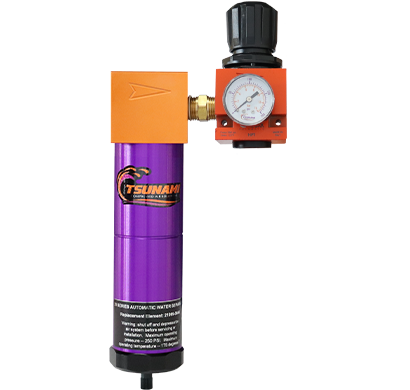

Water Separator with Lubricator Tsunami 21999-0414

MAX CFM: 20

ITEM #: 21999-0414

NPT: ¼

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 3 lbs

DIMENSIONS: 10½" x 4" x 3½"

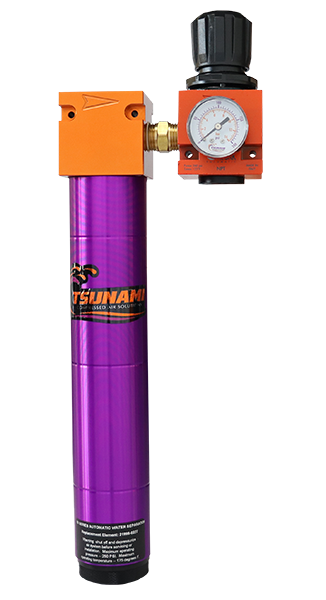

21999-0679 50 CFM Water Separator Regulator Filtration Package 8 NEW web

MAX CFM: 50

ITEM #: 21999-0679

NPT: ½

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 10½ lbs

DIMENSIONS: 18" x 6½" x 6"

MAX CFM: 120

ITEM #: 21999-0968

NPT: 1

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 16 lbs

DIMENSIONS: 21" x 8" x 5½"

MAX CFM	ITEM #	PORT SIZE (NPT)	DRAIN	MAX PSI	MAX °F	WEIGHT (LBS)	DIMENSIONS (IN)	MSRP
20	21999-0414	¼"	FLOAT	250	122	3	10½ x 4 x 3½	$302.00
50	21999-0679	½"	FLOAT	250	122	10½	18 x 6½ x 6	$446.00
120	21999-0968	1"	FLOAT	250	122	16	21 x 8 x 5½	$650.00

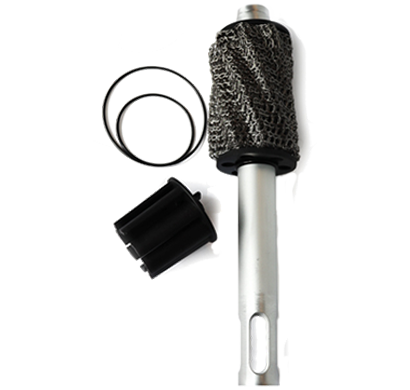

20 Series Water Separator Service Kit

Item #: 21999-0846

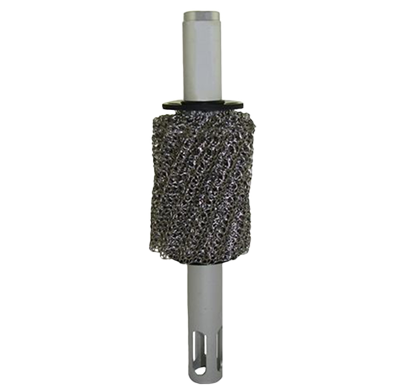

50 Series Water Separator Service Kit

Item #: 21999-0227

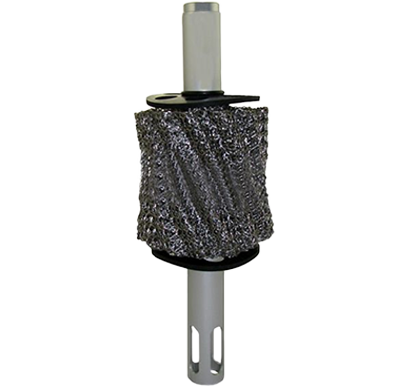

120/240 Series Water Separator Service Kit

Item #: 21999-0228

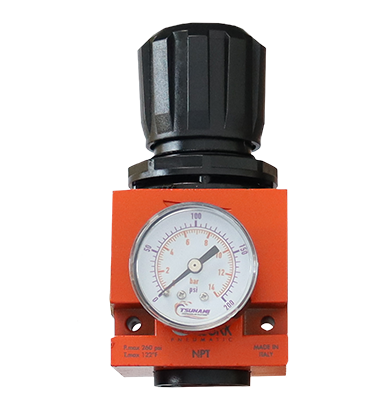

20 Series Pressure Regulator with Gauge - ¼" NPT

Item #: 21999-0870

50 Series Pressure Regulator with Gauge - ½" NPT

Item #: 21999-0871

120/240 Series Pressure Regulator with Gauge - 1" NPT

Item #: 21999-0872

DESCRIPTION	ITEM #	MSRP
20 Series Water Separator Service Kit	21999-0846	$62.00
50 Series Water Separator Service Kit	21999-0227	$75.00
120/240 Series Water Separator Service Kit	21999-0228	$111.00
20 Series Pressure Regulator with Gauge - ¼" NPT	21999-0870	$90.00
50 Series Pressure Regulator with Gauge - ½" NPT	21999-0871	$120.00
120 Series Pressure Regulator with Gauge - 1" NPT	21999-0872	$299.00
