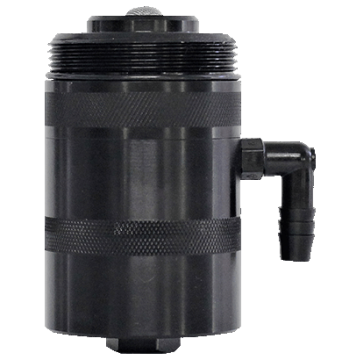

Moisture Minder® Filter Drain Valve

Automatic filter drain

Similar to the standard Moisture Minder® Pneumatic Drain, the Filter Drain requires only an intermittent pilot signal to operate. These models are designed to spin on the corresponding sized Tsunami filter housing.

Pilot Signal Received

Condensation enters and collects in water inlet of valve.

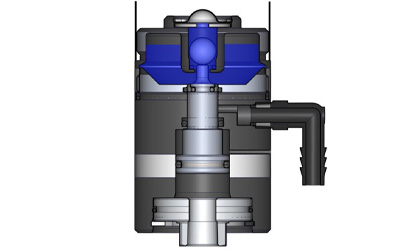

Pilot Signal from Unloader

Piston shifts, closing off drain port. As piston moves, it will open up the stainless ball check allowing condensate to be forced into pressurized discharge reservoir.

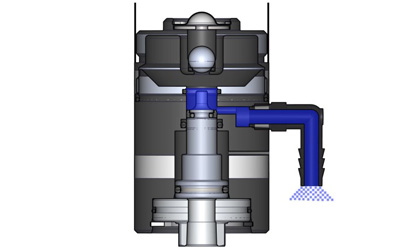

Valve at Rest

When pilot signal is relieved, piston returns to relaxed position. The ball check closes preventing zero pressure loss in the system. The drain port opens and the stored condensate is ejected.

Failure to routinely drain your compressor manually or by other means can contaminate compressed air systems and ruin your pneumatic tools and their application.

Attaches to bottom of Tsunami Filters for operation
Made in USA

Tsunami Product Catalog

FILTER SIZE (CFM)	ITEM #	OUTLET (NPT)	MAX PSI	MAX °F	WEIGHT (LBS)	DIMENSIONS (IN)	MSRP
20	21999-0792 The 20 CFM Moisture Minder Filter Drain Valve requires an intermittent pilot signal to operate. Use a nearby pneumatic signal in your application or purchase our Drain Minder Controller. CFM: 20 ITEM #: 21999-0792 NPT: 1/8" MAX PSI: 250 MAX TEMP: 175°F DIMENSIONS: 4" x 3" x 2"	1/8"	250	175	1	4 x 3 x 2	$175.00

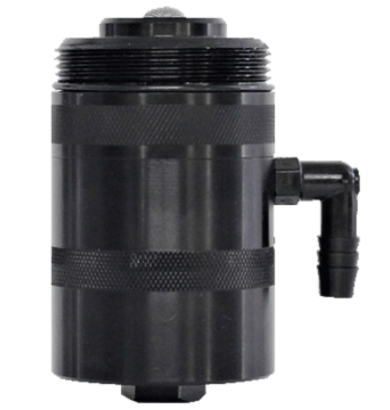

50	21999-0795 The 50 CFM Moisture Minder Filter Drain requires an intermittent pilot signal to operate. Use a nearby pneumatic signal in your application or purchase our Drain Minder Controller. CFM: 50 ITEM #: 21999-0795 NPT: 1/8" MAX PSI: 250 MAX TEMP: 175°F DIMENSIONS: 4" x 3.5" x 2.5"	1/8"	250	175	1	4 x 3.5 x 2.5	$186.00
120	21999-0805 The 120 CFM Moisture Minder Filter Drain requires an intermittent pilot signal to operate. Use a nearby pneumatic signal in your application or purchase our Drain Minder Controller. CFM: 120 ITEM #: 21999-0805 NPT: 1/8" MAX PSI: 250 MAX TEMP: 175°F DIMENSIONS: 4" x 3.5" x 3"	1/8"	250	175	1.5	4 x 3.5 x 3	$199.00
