Tsunami Filter Package #7

Oil Coalescing Filter-Regulator

Removes Oils, Water, and Other Particulates

Tsunami filtration package #7 includes: (1) Oil coalescing filter, (1) Regulator and a mounting bracket.

Tsunami filters are machined from the highest quality materials and are anodized inside and out to ensure ultimate durability against corrosion and trapped contaminates. The Oil Coalescing Filter removes oil aerosols down to .001 ppm and particulates down to .01 micron. The Regulator allows pressure control to ensure downstream components do not exceed their maximum operating pressures.

Air Pressure Regulator

The pressure air regulator allows the operator to adjust the air pressure depending on the application or air tool being used.

Oversized Tube Length

Oversized tube length allows both gravity and velocity to assist in the removal of water air contaminates.

Removable Bottom Cap

Removable bottom cap provides ease of service and machined drain port allows for various drain options.

Features:

Oversized tube length allows both gravity and velocity to assist in the removal of water and air contaminates
Removable bottom cap provides ease of service
Machined drain port allows for various drain capabilities
Mounting bracket included
Made in America

Benefits:

Removes oil aerosols - down to .001 ppm
Filters particulate down to .01 micron at 99.9% efficiency
Regulator provides optimal air pressure to maximize efficiency

Tsunami Product Catalog

Tsunami Filtration Installation Instructions

MAX CFM: 20

ITEM #: 21999-0969

NPT: ¼"

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 3 lbs

DIMENSIONS: 10½" x 4" x 3½"

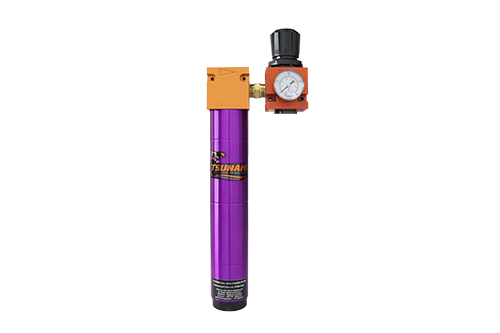

21999-0494 50 SCFM Oil Coalescing Filter Regulator WEB

MAX CFM: 50

ITEM #: 21999-0494

NPT: ½"

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 10½ lbs

DIMENSIONS: 18" x 6½" x 6"

MAX CFM: 120

ITEM #: 21999-0967

NPT: 1"

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 16 lbs

DIMENSIONS: 21" x 8" x 5½"

MAX CFM	ITEM #	PORT SIZE (NPT)	DRAIN	MAX PSI	MAX °F	WEIGHT (LBS)	DIMENSIONS (IN)	MSRP
20	21999-0969	¼"	FLOAT	250	122	3	10½ x 4 x 3½	$272.00
50	21999-0494	½"	FLOAT	250	122	10½	18 x 6½ x 6	$440.00
120	21999-0967	1"	FLOAT	250	122	16	21 x 8 x 5½	$643.00

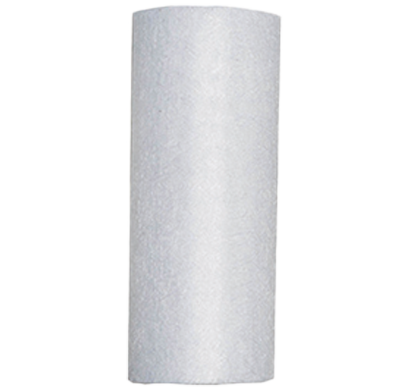

20 Series Oil Coalescing Service Kit

Item #: 21999-0394

oil coalescing filter element replacement 21999-0202_web

50/120/240 Series Oil Coalescing Service Kit

Item #: 21999-0202

20 Series Pressure Regulator with Gauge - ¼" NPT

Item #: 21999-0870

50 Series Pressure Regulator with Gauge - ½" NPT

Item #: 21999-0871

120 Series Pressure Regulator with Gauge - 1" NPT

Item #: 21999-1121

DESCRIPTION	ITEM #	MSRP
20 Series Oil Coalescing Service Kit	21999-0394	$68.00
50/120/240 Series Oil Coalescing Service Kit	21999-0202	$81.00
20 Series Pressure Regulator with Gauge - ¼" NPT	21999-0870	$90.00
50 Series Pressure Regulator with Gauge - ½" NPT	21999-0871	$120.00
120 Series Pressure Regulator with Gauge - 1" NPT	21999-1121	$299.00
