Compressor Water Separators

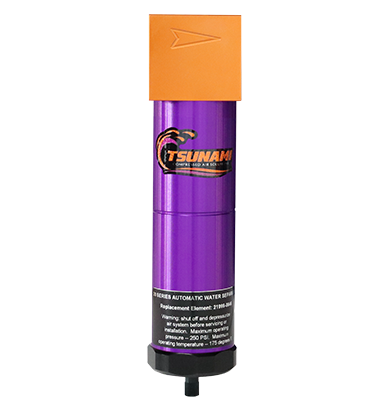

21999-0390 20 CFM Water Separator_web bucket

20 Series

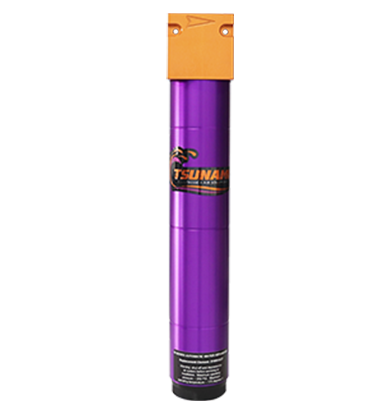

21999-0131 50 CFM water separator_web bucket

50 Series

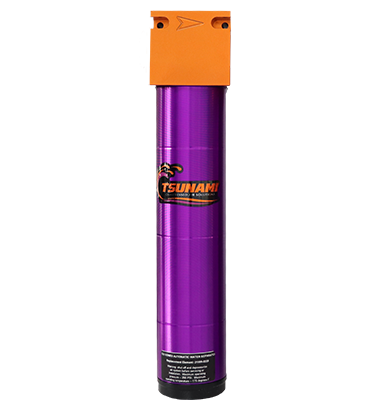

21999-1034 120 CFM Water Separator_web bucket

120 Series

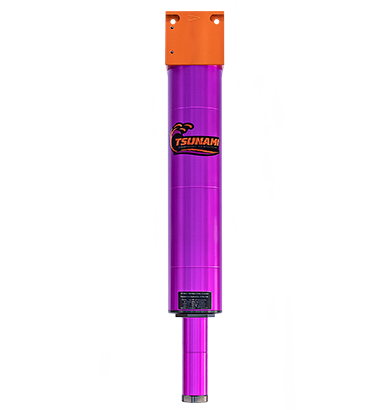

21999-1096 300 CFM Water Separator_web bucket

300 Series

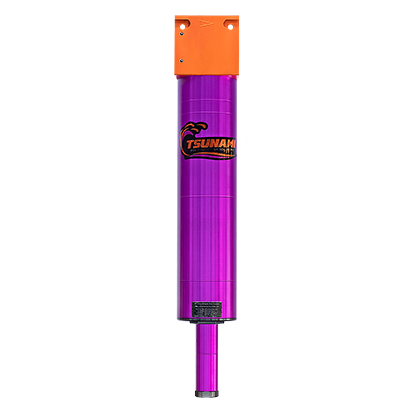

21999-1120 600 CFM water separator_web bucket

600 Series

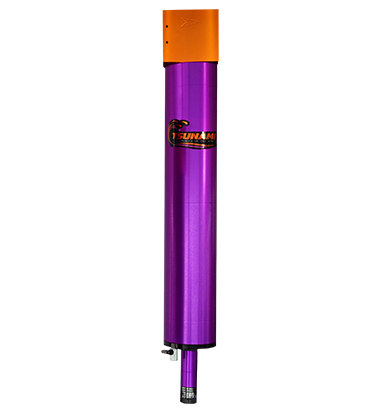

21999-0960 800 CFM water separator_web bucket

800 Series

Premium Materials

Tsunami filters are machined from high-quality 6061 Aircraft Aluminum and then anodized inside and out - providing industrial strength and preventing corrosion and rust.

Oversized Tube Length

Oversized tube length allows both gravity and velocity to assist in the removal of water air contaminates.

Removable Bottom Cap

Removable bottom cap provides ease of service and machined drain port allows for various drain options.

Features:

Machined from 6061 aircraft aluminum
Automatic drains
Steel mesh element requires minimal servicing
Available for systems with a flow rating from 20 to 800 CFM
Optional mounting bracket sold separately
Made in America

Benefits:

Point-of-use protection for air tools and pneumatic equipment
Removes bulk liquids and water
Filters particulate down to 10 micron at 99% efficiency

Tsunami Product Catalog

225 - 800 CFM Installation Instructions

Tsunami Filtration Installation Instructions

Float Drain

Standard Drain

Contains a float within the device that normally seats on a small orifice. When liquid enters the drain the float rises off its seat, exposing the orifice and allowing liquid to discharge through the stem.

Pneumatic Drain

Requires Pilot Signal

A pneumatically actuated drain valve efficiently removes liquids from the filters using an intermittent pilot signal. Water separators, up to 120 CFM, use the filter drain with an internal reservoir (pictured above). Larger units, 225 CFM+, have a head-mounted pneumatic drain valve with an external reservoir.

Electronic Drain

Requires Electricity

Incorporates a solenoid valve and an electric timer with two on/off settings. ON is the setting for the amount of time the valve needs to stay open (0.5 to 10 seconds) and OFF is the time between openings (0.5 to 45 minutes).

MAX CFM: 20

ITEM #: 21999-0390

NPT: ¼

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 1.5 lbs

DIMENSIONS: 8.5" x 2" x 2"

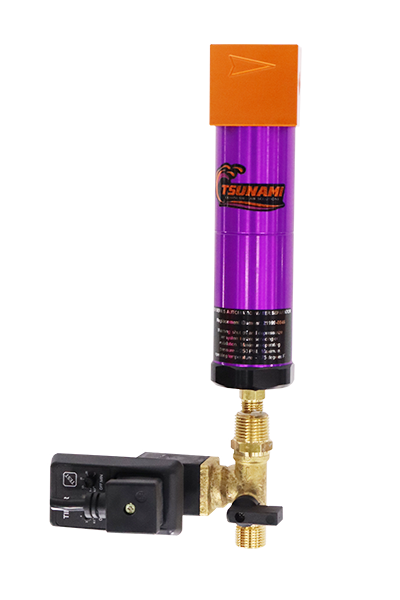

MAX CFM: 20

ITEM #: 21999-0390-ED

NPT: ¼

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 2.5 lbs

DIMENSIONS: 12" x 2" x 2"

21999-0390-Z-MM 20 CFM Water Separator_WEB

MAX CFM: 20

ITEM #: 21999-0390-MM

NPT: ¼

DRAIN: PNEUMATIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 2 lbs

DIMENSIONS: 10.5" x 2" x 2"

MAX CFM: 50

ITEM #: 21999-0131

NPT: ½

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 3.5 lbs

DIMENSIONS: 14.5" x 2.5" x 2.5"

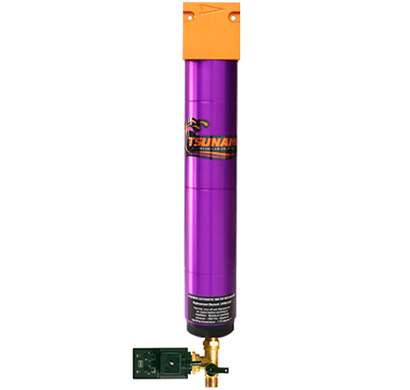

MAX CFM: 50

ITEM #: 21999-0131-ED

NPT: ½

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 6 lbs

DIMENSIONS: 17.5" x 5.5" x 4"

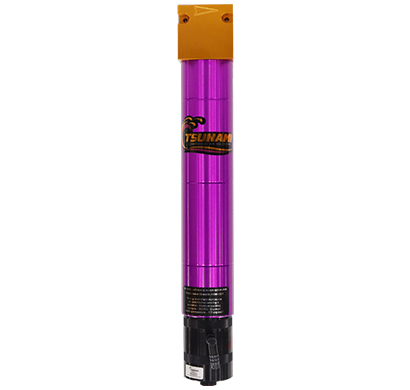

MAX CFM: 50

ITEM #: 21999-0131-MM

NPT: ½

DRAIN: PNEUMATIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 6 lbs

DIMENSIONS: 17" x 2.5" x 2.5"

MAX CFM: 120

ITEM #: 21999-1034

NPT: ¾

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9 lbs

DIMENSIONS: 16" x 3.5" x 3.5"

MAX CFM: 120

ITEM #: 21999-1034-ED

NPT: ¾

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9.5 lbs

DIMENSIONS: 18" x 6" x 4.5"

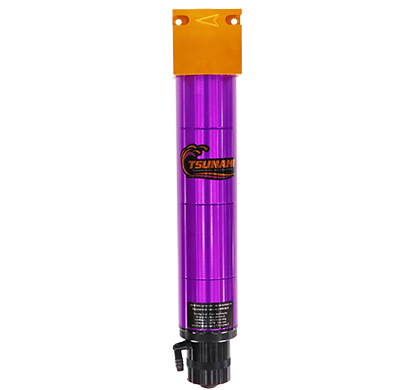

MAX CFM: 120

ITEM #: 21999-1034-MM

NPT: ¾

DRAIN: PNEUMATIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9 lbs

DIMENSIONS: 18" x 3.5" x 3.5"

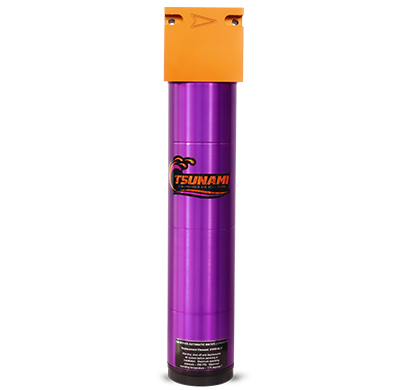

MAX CFM: 120

ITEM #: 21999-0082

NPT: 1

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9 lbs

DIMENSIONS: 16" x 3.5" x 3.5"

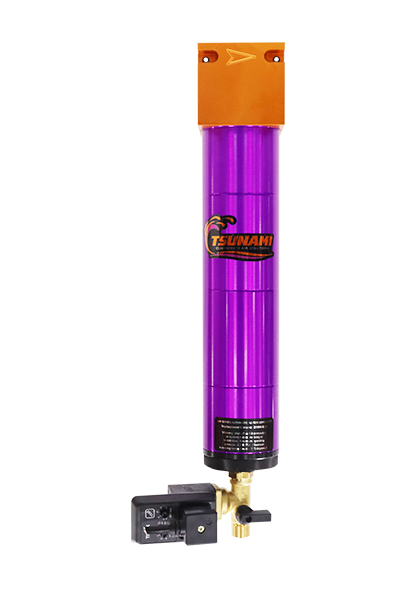

MAX CFM: 120

ITEM #: 21999-0082-ED

NPT: 1

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9.5 lbs

DIMENSIONS: 18" x 6" x 4.5"

MAX CFM: 120

ITEM #: 21999-0082-MM

NPT: 1

DRAIN: PNEUMATIC

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9 lbs

DIMENSIONS: 18" x 3.5" x 3.5"

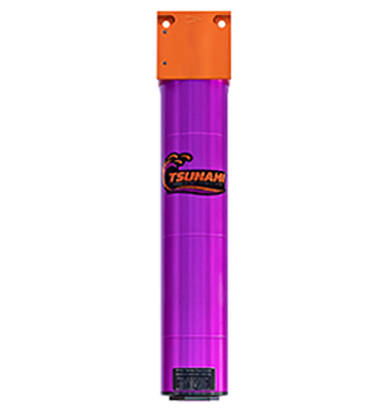

MAX CFM: 225

ITEM #: 21999-1150

NPT: 1½

DRAIN: FLOAT

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 12 lbs

DIMENSIONS: 22" x 4.5" x 4.5"

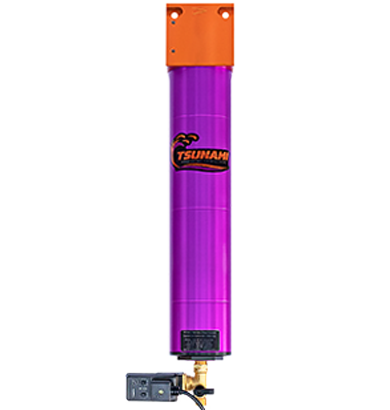

MAX CFM: 225

ITEM #: 21999-1150-ED

NPT: 1½

DRAIN: ELECTRONIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 13 lbs

DIMENSIONS: 25" x 4.5" x 4.5"

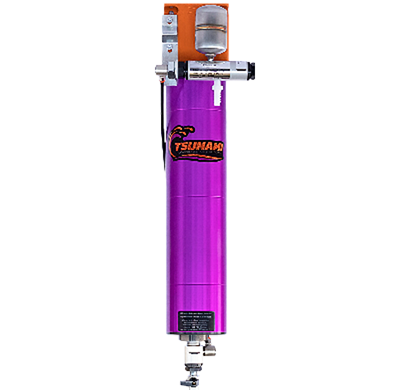

MAX CFM: 225

ITEM #: 21999-1150-MM

NPT: 1½

DRAIN: PNEUMATIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 14 lbs

DIMENSIONS: 26" x 4.5" x 8.5"

MAX CFM: 300

ITEM #: 21999-1096

NPT: 1½

DRAIN: FLOAT

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 12 lbs

DIMENSIONS: 28" x 4.5" x 6.5"

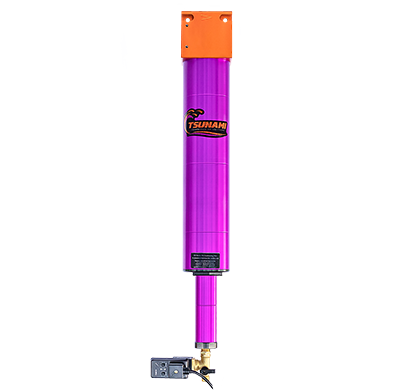

MAX CFM: 300

ITEM #: 21999-1096-ED

NPT: 1½

DRAIN: ELECTRONIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 13 lbs

DIMENSIONS: 31" x 4.5" x 6.5"

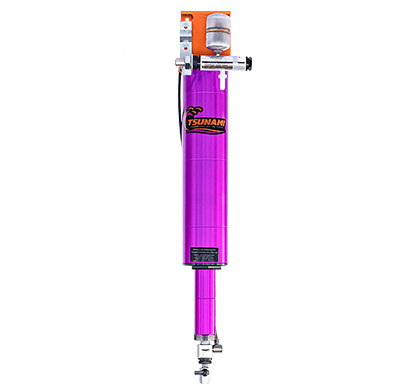

MAX CFM: 300

ITEM #: 21999-1096-MM

NPT: 1½

DRAIN: PNEUMATIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 14 lbs

DIMENSIONS: 32" x 4.5" x 10"

MAX CFM: 450

ITEM #: 21999-1160

NPT: 2

DRAIN: FLOAT

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 19½ lbs

DIMENSIONS: 26" x 5.5" x 5.5"

MAX CFM: 450

ITEM #: 21999-1160-ED

NPT: 2

DRAIN: ELECTRONIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 20½ lbs

DIMENSIONS: 28" x 5.5" x 5.5"

MAX CFM: 450

ITEM #: 21999-1160-MM

NPT: 2

DRAIN: PNEUMATIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 21½ lbs

DIMENSIONS: 29" x 5.5" x 9.5"

MAX CFM: 600

ITEM #: 21999-1120

NPT: 2

DRAIN: FLOAT

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 20 lbs

DIMENSIONS: 31" x 5.5" x 5.5"

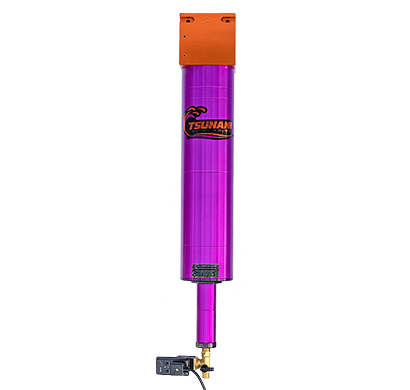

MAX CFM: 600

ITEM #: 21999-1120-ED

NPT: 2

DRAIN: ELECTRONIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 21 lbs

DIMENSIONS: 34" x 5.5" x 5.5"

waterseparator_21999-1120-MM_WithPneumaticDrain WEB

MAX CFM: 600

ITEM #: 21999-1120-MM

NPT: 2

DRAIN: PNEUMATIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 22 lbs

DIMENSIONS: 35" x 5.5" x 5.5"

MAX CFM: 800

ITEM #: 21999-0960

NPT: 3

DRAIN: FLOAT

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 45 lbs

DIMENSIONS: 35.5" x 6" x 6"

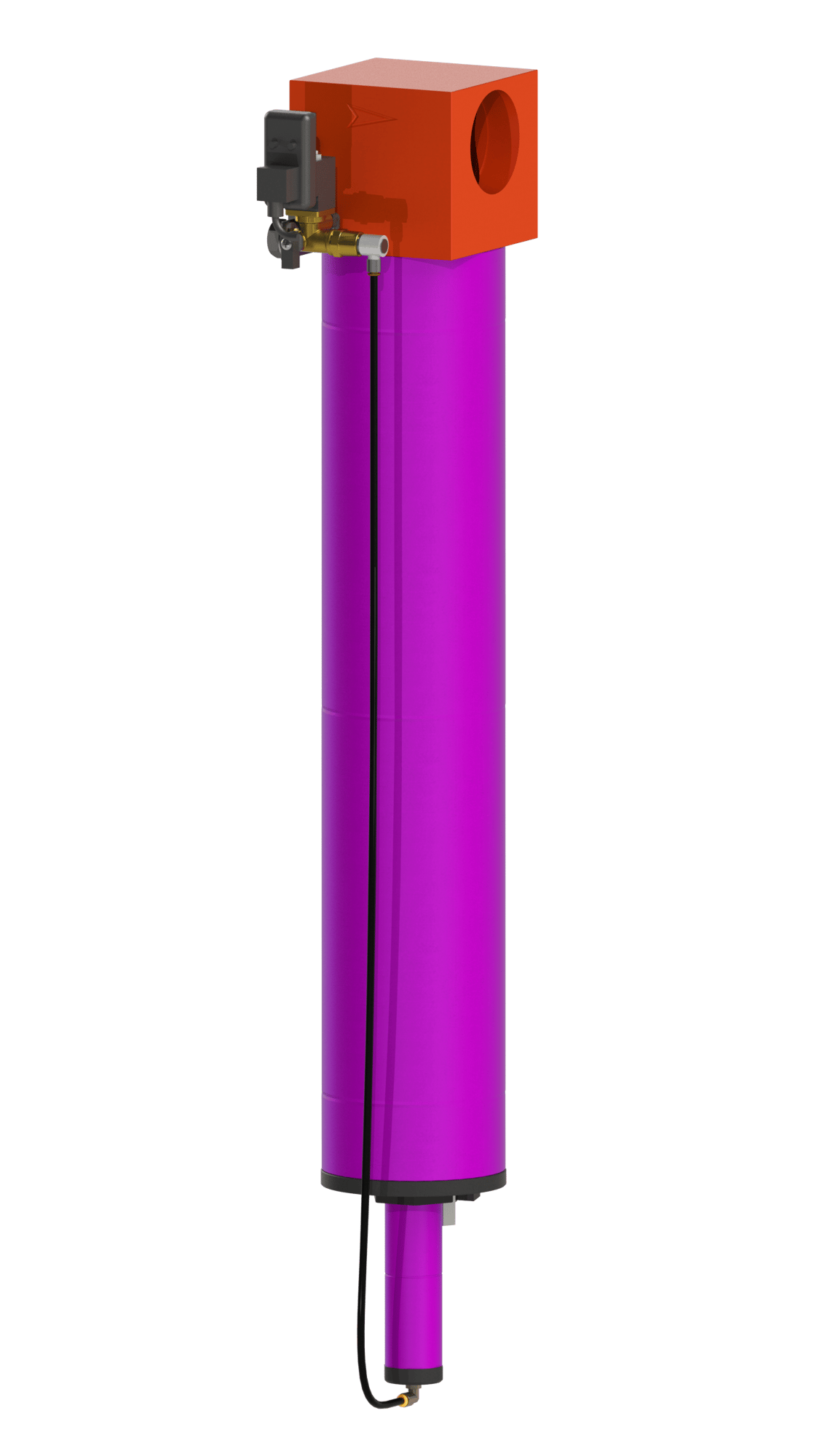

MAX CFM: 800

ITEM #: 21999-0960-ED

NPT: 3

DRAIN: ELECTRONIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 46 lbs

DIMENSIONS: 35.5" x 6" x 10"

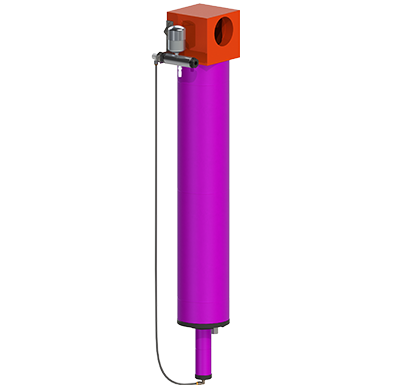

MAX CFM: 800

ITEM #: 21999-0960-MM

NPT: 3

DRAIN: PNEUMATIC

MAX PSI: 200

MAX TEMP: 175°F

WEIGHT: 46 lbs

DIMENSIONS: 35.5" x 6" x 8.5"

MAX CFM	ITEM #	PORT SIZE (NPT)	DRAIN	MAX PSI	MAX °F	WEIGHT (LBS)	DIMENSIONS (HWD)	MSRP
20	21999-0390	¼	FLOAT	250	175	1.5	8.5" x 2" x 2"	$193.00
20	21999-0390-ED	¼	ELECTRONIC	250	175	2.5	12" x 2" x 2"	$284.00
20	21999-0390-MM	¼	PNEUMATIC	250	175	2	10.5" x 2" x 2"	$284.00
50	21999-0131	½	FLOAT	250	175	3.5	14.5" x 2.5" x 2.5"	$308.00
50	21999-0131-ED	½	ELECTRONIC	250	175	6	17.5" x 5.5" x 4"	$392.00
50	21999-0131-MM	½	PNEUMATIC	250	175	6	17" x 2.5" x 2.5"	$392.00
120	21999-1034	¾	FLOAT	250	175	9	16" x 3.5" x 3.5"	$374.00
120	21999-1034-ED	¾	ELECTRONIC	250	175	9.5	18" x 6" x 4.5"	$471.00
120	21999-1034-MM	¾	PNEUMATIC	250	175	9	18" x 3.5" x 3.5"	$471.00
120	21999-0082	1	FLOAT	250	175	9	16" x 3.5" x 3.5"	$374.00
120	21999-0082-ED	1	ELECTRONIC	250	175	9.5	18" x 6" x 4.5"	$471.00
120	21999-0082-MM	1	PNEUMATIC	250	175	9	18" x 3.5" x 3.5"	$471.00
225	21999-1150	1½	FLOAT	200	175	12	22" x 4.5" x 4.5"	$1,225.00
225	21999-1150-ED	1½	ELECTRONIC	200	175	13	25" x 4.5" x 4.5"	$1,310.00
225	21999-1150-MM	1½	PNEUMATIC	200	175	14	26" x 4.5" x 8.5"	$1,755.00
300	21999-1096	1½	FLOAT	200	175	12	28" x 4.5" x 6.5"	$1,388.00
300	21999-1096-ED	1½	ELECTRONIC	200	175	13	31" x 4.5" x 6.5"	$1,473.00
300	21999-1096-MM	1½	PNEUMATIC	200	175	14	32" x 4.5" x 10"	$1,918.00
450	21999-1160	2	FLOAT	200	175	19½	26" x 5.5" x 5.5"	$1,498.00
450	21999-1160-ED	2	ELECTRONIC	200	175	20½	28" x 5.5" x 5.5"	$1,584.00
450	21999-1160-MM	2	PNEUMATIC	200	175	21½	29" x 5.5" x 9.5"	$2,028.00
600	21999-1120	2	FLOAT	200	175	20	31" x 5.5" x 5.5"	$1,661.00
600	21999-1120-ED	2	ELECTRONIC	200	175	21	34" x 5.5" x 5.5"	$1,747.00
600	21999-1120-MM	2	PNEUMATIC	200	175	22	35" x 5.5" x 5.5"	$2,191.00
800	21999-0960	3	FLOAT	200	175	45	35.5" x 6" x 6"	$2,634.00
800	21999-0960-ED	3	ELECTRONIC	200	175	46	35.5" x 6" x 10"	$2,718.00
800	21999-0960-MM	3	PNEUMATIC	200	175	46	35.5" x 6" x 8.5"	$3,176.00

Drain Tube Kit - 10 Pack

Item #: 21999-0201

Mounting Bracket -20 Series

Item #: 21999-0867

Mounting Bracket - 50 & 120 Series

Item#: 21999-0144

Mounting Bracket - 225/300/450/600 Series

Item #: 21999-1126

DESCRIPTION	ITEM #	MSRP
Drain Tube Kit - 10 Pack	21999-0201	$123.00
Mounting Bracket -20 Series	21999-0867	$20.00
Mounting Bracket - 50 & 120 Series	21999-0144	$60.00
Mounting Bracket - 225/300/450/600 Series	21999-1126	$135.00

20 Series Water Separator Service Kit

Item #: 21999-0846

50 Series Water Separator Service Kit

Item #: 21999-0227

120/240 Series Water Separator Service Kit

Item #: 21999-0228

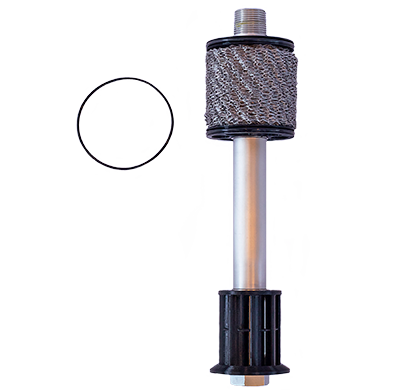

225/300 Series Water Separator Service Kit

Item #: 21999-1098

450/600 Series Water Separator Service Kit

Item #: 21999-1121

800 Series Water Separator Service Kit

Item #: 21999-1005

DESCRIPTION	ITEM #	MSRP
20 Series Water Separator Service Kit	21999-0846	$62.00
50 Series Water Separator Service Kit	21999-0227	$75.00
120/240 Series Water Separator Service Kit	21999-0228	$111.00
225/300 Series Water Separator Service Kit	21999-1098	$724.00
450/600 Series Water Separator Service Kit	21999-1121	$928.00
800 Series Water Separator Service Kit	21999-1005	$1,141.00
